STEP 1: Download and Install Firewalla App





STEP 2: Know the Hardware

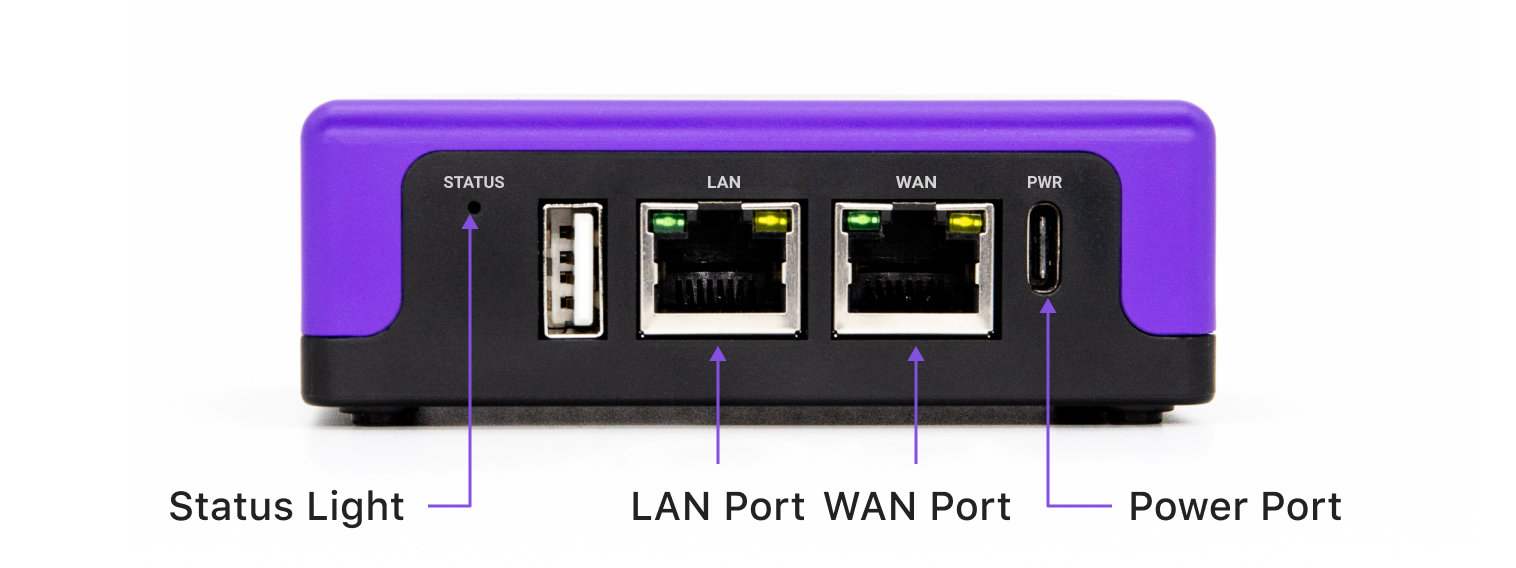

Firewalla Purple Back View

• The STATUS light is used to indicate the status of the box.

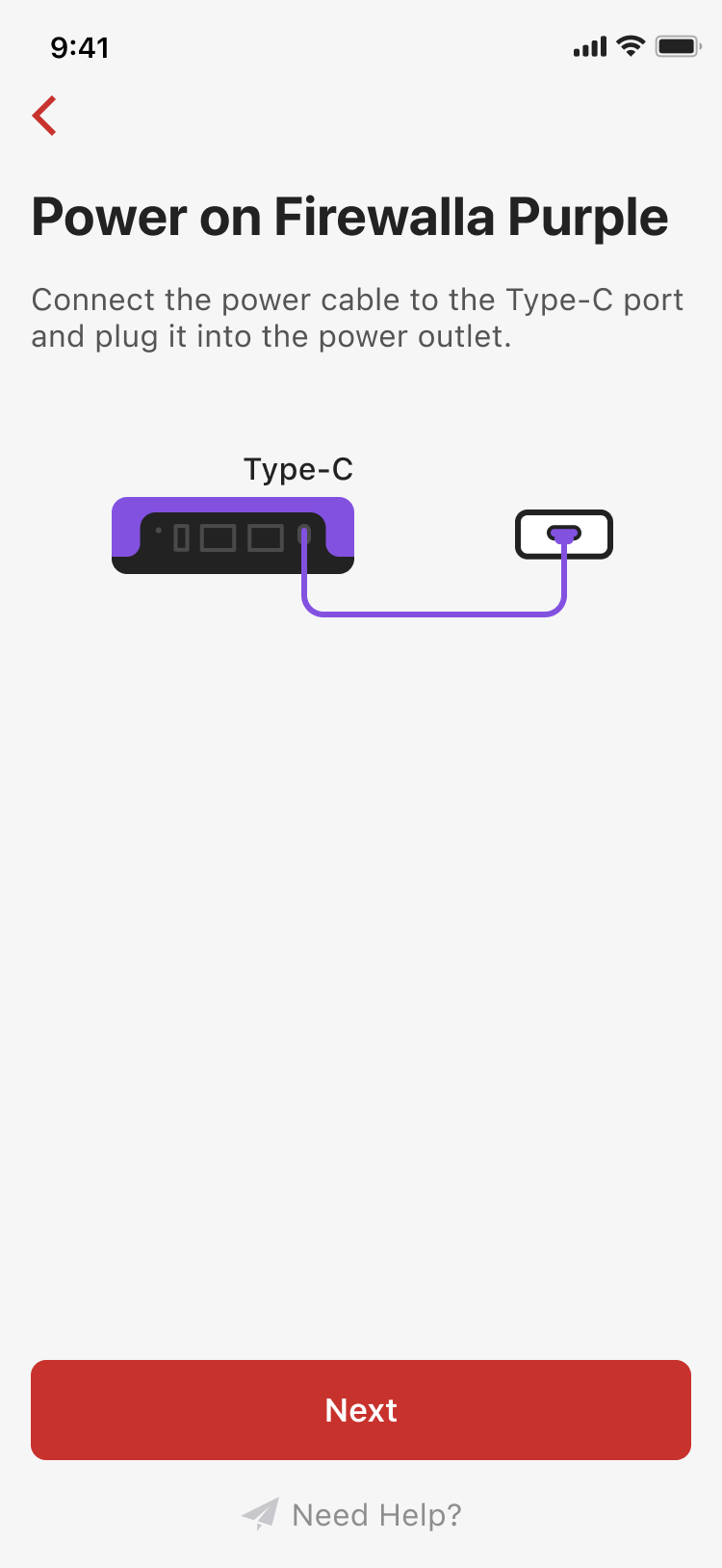

• 1 USB Type-C Port (PWR) is used for power.
• The USB 2.0 port is for future expansion and is not yet supported.
• Two fully-routable Ethernet ports labeled LAN and WAN.

Note, the Ethernet ports are not interchangeable. They must be wired appropriately to other devices as described for each scenario.



Ethernet Lights on Purple

Color	Speed	Solid light	Flashing light
Green (left)	100 Mbps	FE connection established	Data moving
Amber (right):	1000 Mbps/1 Gbps	GE connection established	Data moving



Firewalla Purple Front View

• The reset button can be used to reset. Tutorial: Reset Firewalla Purple.
• One SD Card reader slot for expanded space for customizations such as running docker containers and reflashing the Purple if necessary. (Insert SD Card with the gold tips facing up and the brand and text side facing down.)



STEP 3: Getting Started & Wiring Your Network

Firewalla Purple is an extremely powerful and flexible networking device and can be used in several configurations based on your needs and what equipment you have running the rest of your network. So before wiring up the Purple for your network, you must decide the following:

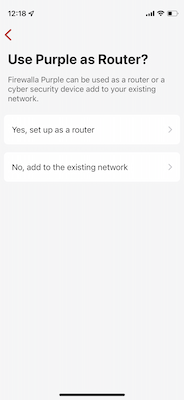

Do you want to use Firewalla as your main router?

• Yes. Set up as a router - Router mode (recommended)
• No. Add to an existing network

  • Simple/ DHCP mode , no need to rewire (support for Simple and DHCP mode may be reduced soon. We highly recommend using Bridge or Router mode).
  • Transparent Bridge Mode



STEP 3.1: Set up as a router (Router Mode) (Recommended)



We highly recommend using the Firewalla Purple in router mode. In this mode, Firewalla Purple will become your main router and will manage your network inline between your network and your ISP modem/router.



Not all networks are the same, and not everyone has the same service providers. To make your life simpler, check out our Router mode configuration guide to see how Firewalla boxes can run as routers in different ways.



When to use

The advantages of Router mode include:

• Firewalla will be able to manage your traffic inline.
• All the routing functions of your network will be done by Firewalla, and your Wi-Fi router can use the extra CPU cycles to provide you with better Wi-Fi.
• The LAN port can be configured later as one big segment or as individual network segments with a managed switch. See Firewalla: Network Segmentation Use Cases and Working from Home, Better & Smarter
• Unlike Simple/DHCP mode , this mode does not have compatibility issues.
• If you have triple-play services over VLANs required by your ISP, please see this guide.



Depending on your equipment, there are a few ways to configure Purple as your router.

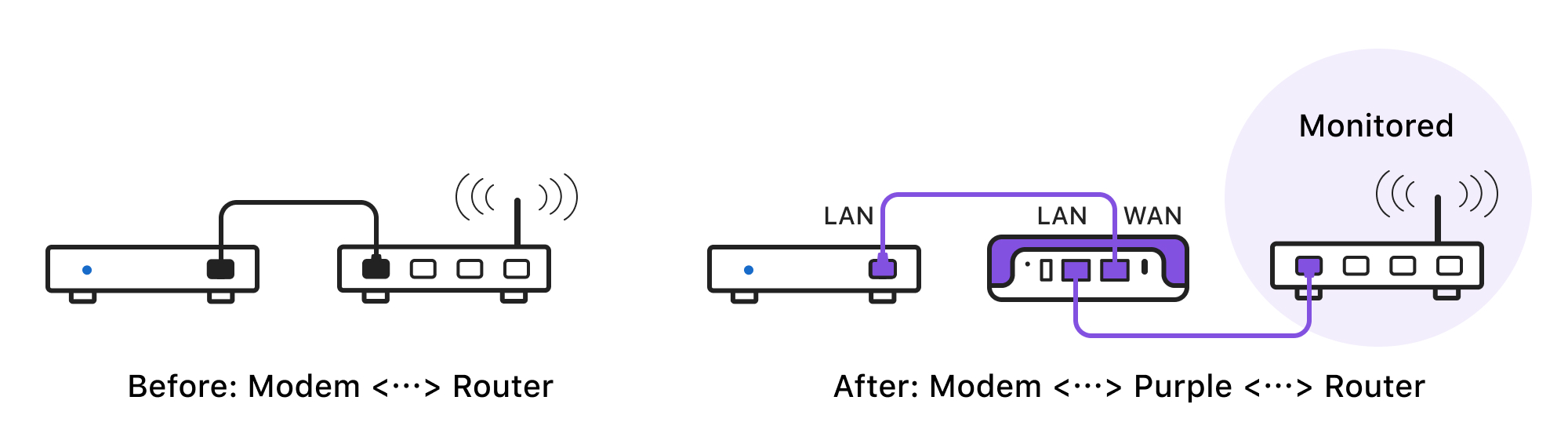

Scenario A. You have a router connected to a modem

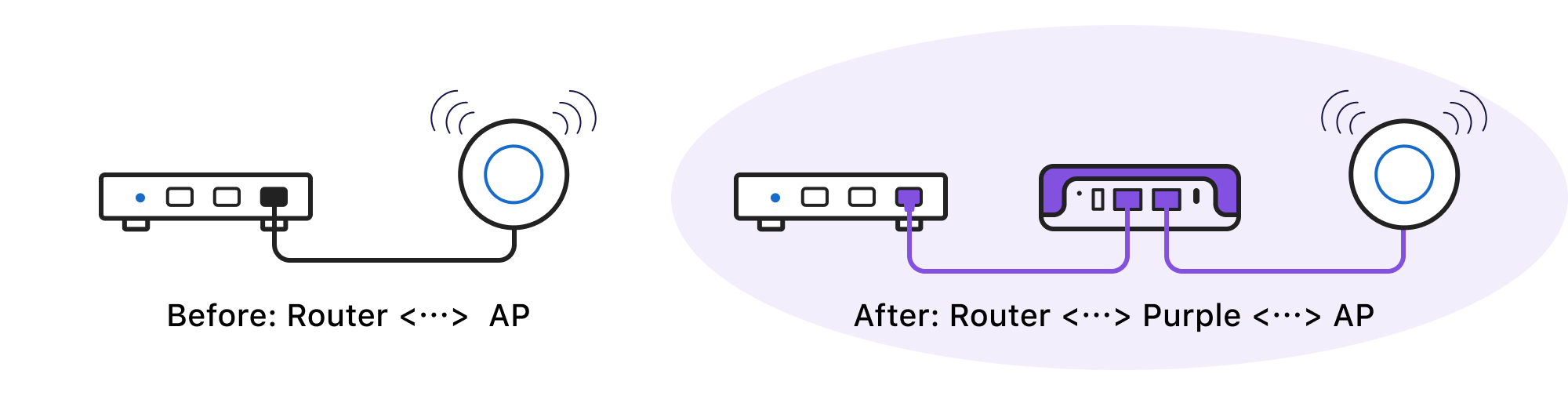

Connect the LAN port of your modem to Purple's WAN port, then connect Purple's LAN port to the router's WAN port. After connection, configure the old router into AP mode or Bridge mode. Purple will now be your router.

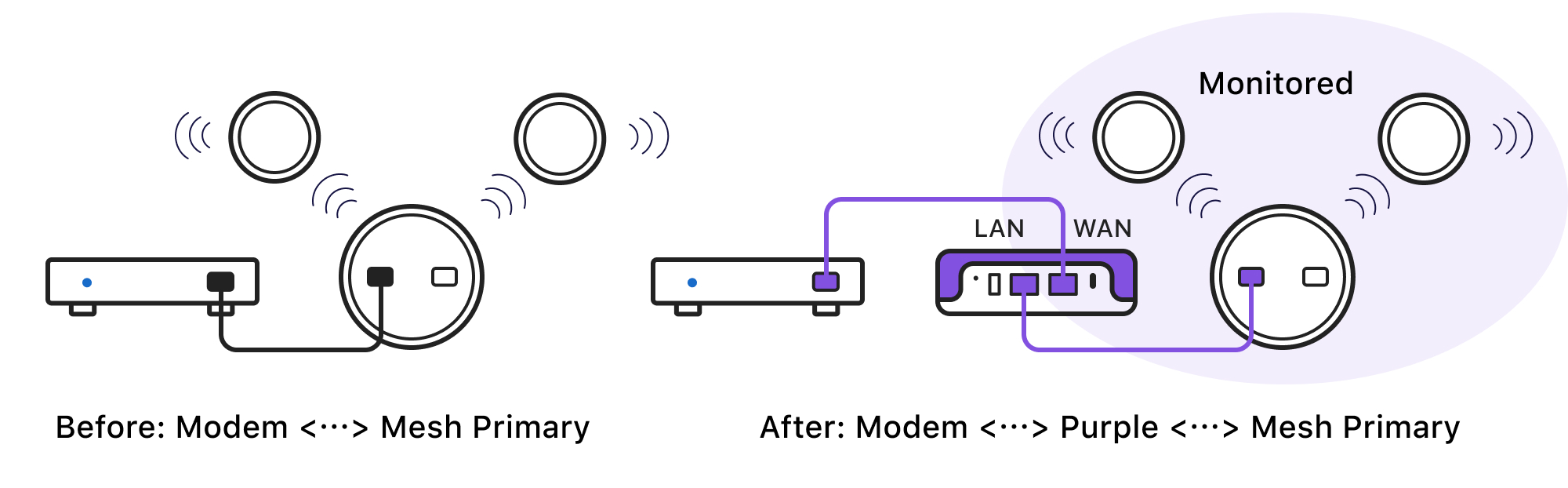

Scenario B. You have a mesh network

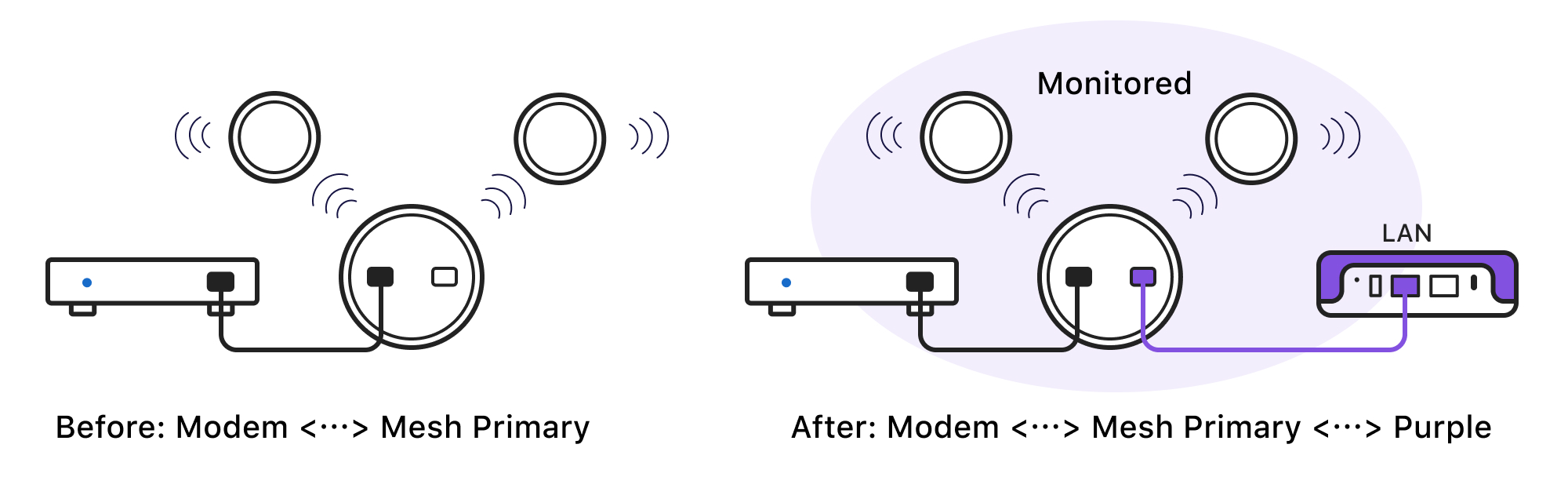

Connect the LAN port of Modem to Purple's WAN port. Then connect the Purple's LAN port to the primary mesh unit's WAN port. Note, do not connect the Purple's LAN port to a mesh satellite device.

After connection, please change the mesh router to AP mode or Bridge mode. Check out our guide on specific brands/models.

If you have a Google Wi-Fi Mesh Network (Here is an additional Guide ).





Scenario C. You have an integrated modem/router

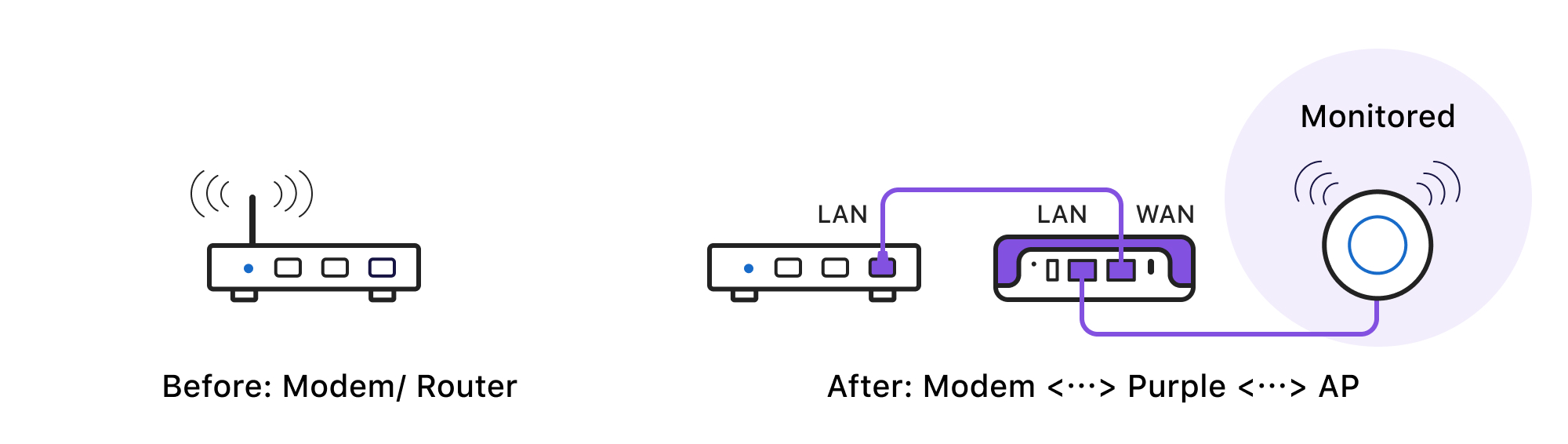

Connect the Purple's WAN port to the LAN port of Modem/Router, then connect your devices to the Purple's LAN port.



1. Turn off the routing function of the modem/router (change it to Bridge mode) to avoid double NAT on your network.
2. Typically you will want an extra Wi-Fi device such as a Wi-Fi router, Wi-Fi mesh router, or access point (a Wi-Fi-only device) to connect to Purple. You should run these devices in AP (Access Point) mode.
3. If you do not have an extra Wi-Fi router and do not want to purchase an extra Wi-Fi router, please use Simple or DHCP mode (note that support for Simple and DHCP mode may be reduced soon. We highly recommend using Bridge or Router mode).

Firewalla Purple has built-in Wi-Fi service. It does support Wi-Fi LAN, but due to the small space for an antenna and power requirements, Purple's Wi-Fi is only meant for a fairly small number of users in a smallish space. It is not intended to take the place of more powerful Wi-Fi APs.



STEP 3.2: Add to an existing network (Simple/DHCP mode )

Simple and DHCP modes are best if you just want to augment your network with Firewalla's security monitoring capabilities. These modes do not require you to rewire your network. Please note that support for Simple and DHCP modes may be reduced soon. We highly recommend using Bridge or Router mode.

• The router must be connected to the LAN port on Purple.
• This article describes how Simple/DHCP mode works.
• This article has the compatibility guidelines for Simple/DHCP mode and mesh routers.
• The WAN port can be configured later as one big segment or as individual network segments with a managed switch and VLANs.
• Reminder: Router mode is much more efficient for this scenario. You don't have to worry about router compatibility and tell Firewalla how your network is configured.

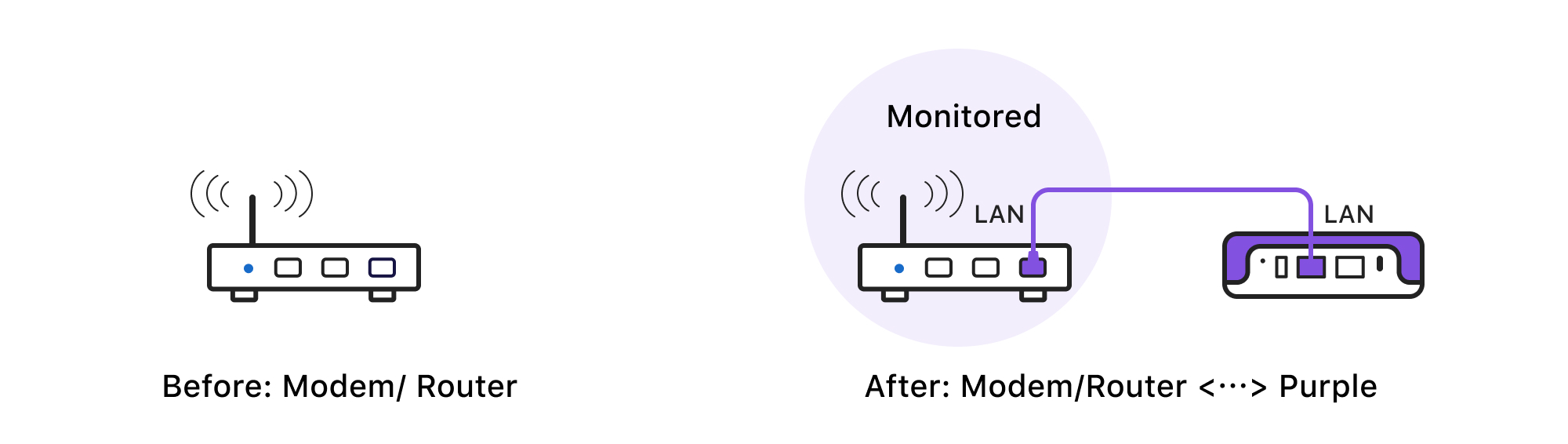

Scenario A. You have integrated modem/router

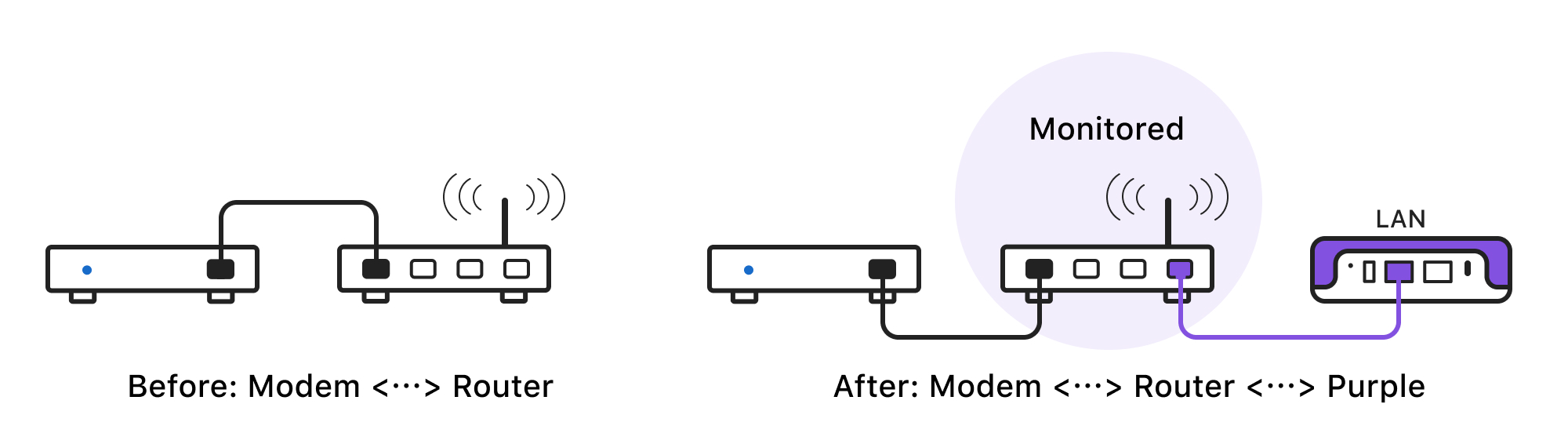

If you are using the modem/router combo you just need to connect the Firewalla purple's LAN port to one of the LAN ports of the modem/router.





Scenario B. You have a mesh network

If you wish to use this mode anyway, connect the Firewalla box's LAN port to the LAN port of the primary device (not the satellite device). After installation, please disable the monitoring of the satellite devices in the Firewalla app after app installation. You will find more in our Mesh Router Guide.

Scenario C. You have a router connecting to a separate modem

If you wish to use this mode anyway, connect the Purple's LAN port to one of the LAN ports of the router. Make sure the mobile phone running the Firewalla App during installation is connected to the WI-FI network provided by the same router where Purple is plugged in.





Scenario D. Advanced Simple Mode

If you want Firewalla Purple to monitor multiple networks (this is not the usual configuration, most of you will not need this), please see this guide. Note that support for Advanced Simple mode may be reduced soon. We highly recommend using Bridge or Router mode.



STEP 3.3: Adding to an existing network (Bridge Mode)

Firewalla Transparent Bridge Mode places a Firewalla Purple or Gold physically in the middle of an existing network without modifying the IP address of the network.

When to use

• If your network is not compatible with Simple Mode and you don't want to use DHCP mode .
• To preserve existing router functions due to compliance or complexity of replacing the router.
• To filter traffic without creating additional networks.

Scenario

Connect Purple's WAN Port to the LAN port of your router, then connect the rest of your devices to Purple's LAN port. All network flows passing through Firewalla will be monitored and controlled.

Learn more about bridge mode.



STEP 4: Pairing Firewalla App with Purple

Before pairing the App to your Firewalla:

1. Reboot the modem/router before installing Purple in router mode. Some service providers may require you to do this when using a new router.
2. Make sure your mobile phone has internet access. If you are setting up Purple in router mode, and your phone is still connected to Wi-Fi, we recommend switching to cellular mode. If you don't have cellular data or Wi-Fi access, here's a workaround for setting up Purple as your main router without connecting your phone to the Internet: How to set up Gold/Purple as your main router if your phone has no Internet access.
3. If you are setting up your Purple with Simple/DHCP Mode or Bridge Mode, make sure to turn on the DHCP function on your router, otherwise Purple may not be able to get its IP Address from it.

Note, currently, Purple does not support the initial setup with a Wi-Fi WAN, if you'd like to use Wi-Fi as your only WAN connection, set it up with an ethernet cable first, then switch the WAN to Wi-Fi or use Fail-over mode.

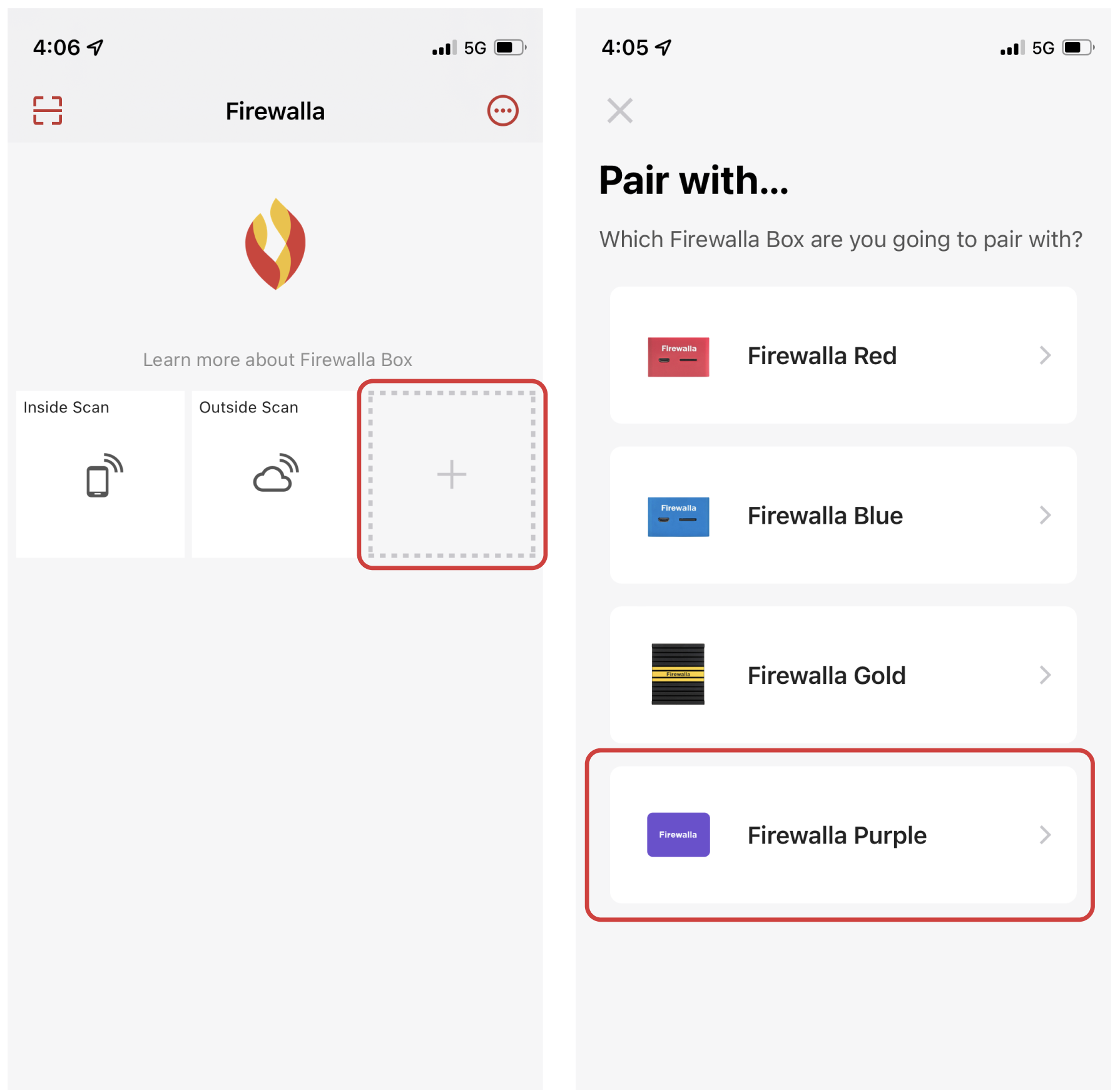

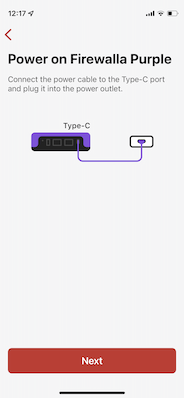

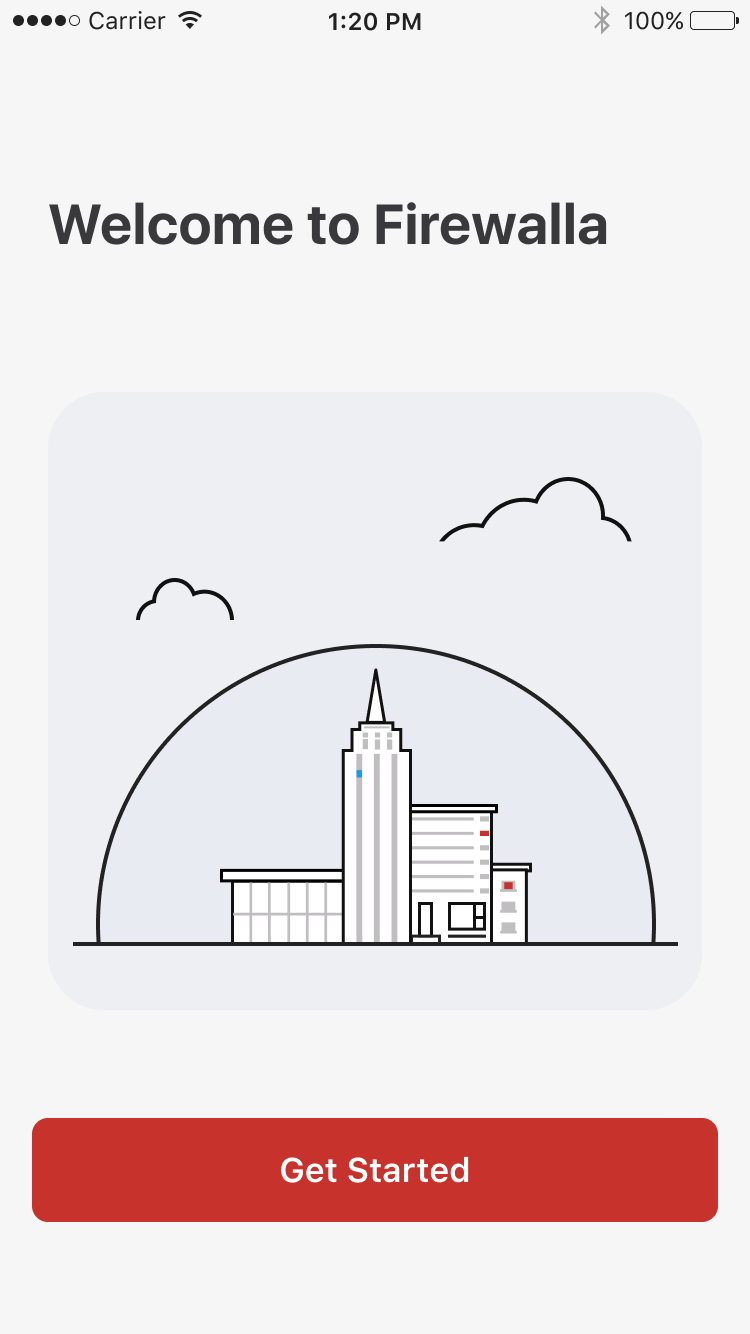

Open the Firewalla App on your phone, tap on the "+" icon, choose Firewalla Purple, and the App will guide you to wire up the box.





When Firewalla Purple is found, the App will ask you to scan the QR code on the bottom of the unit.

Next, select the model based on the wiring you did in STEP 3. Once the mode is set, and the Box is wired up correctly. Firewalla will automatically set up the network.

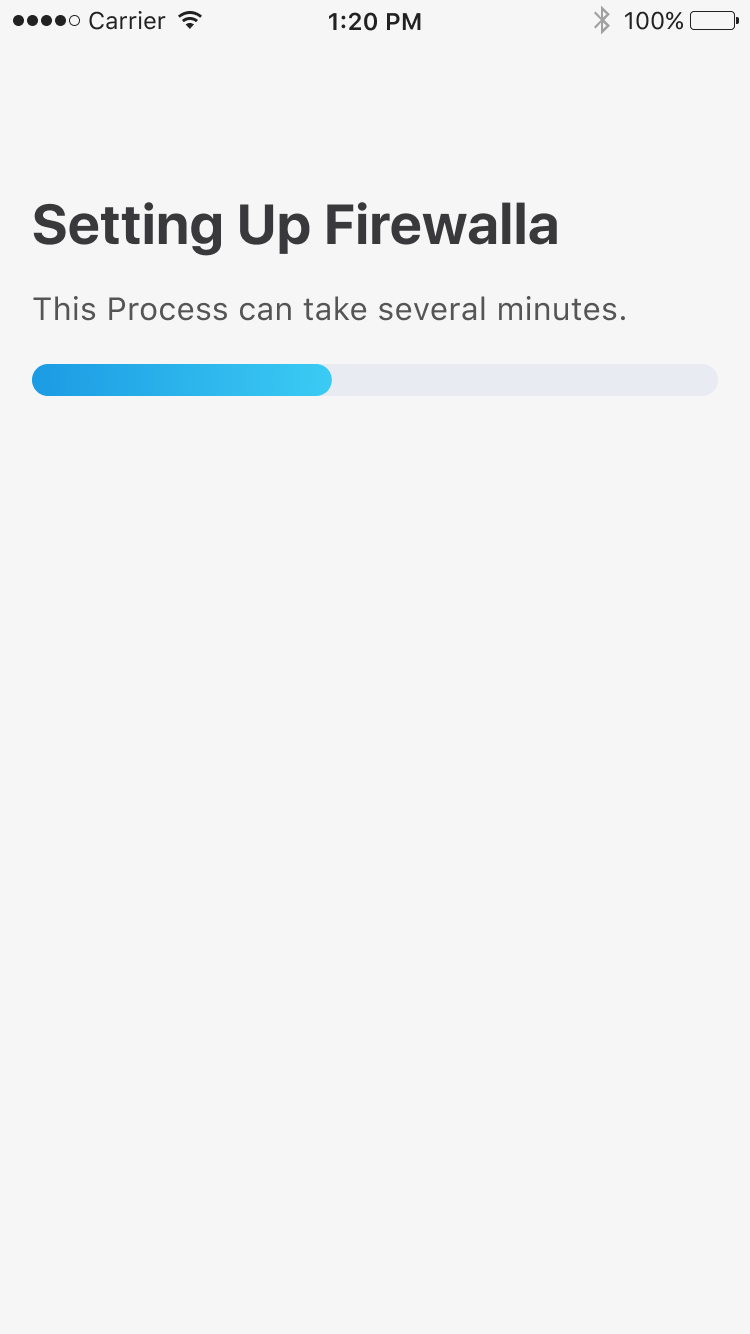

The setting up process make take several minutes, you can refer to the status light next to the USB port to understand the status of the box.



Light	Firewalla Box Status
Blinking Blue	Booting Up
Fast Blinking Blue	Underlying App Communication
Solid Blue	No Ethernet Cable Plugged
Blinking Red	Network Down
Solid Red	System Error



STEP 5: Configure Networks and Wi-Fi

• Network Configuration and Segmentation using the Network Manager
• Firewalla Purple: Short Distance Wi-Fi



STEP 6: Additional Configuration Settings

• Getting Started With Your Firewalla
• Migrating From Other Boxes
• Device Groups
• Manage Rules
• Network Segmentation Use cases
• Try our beta web interface

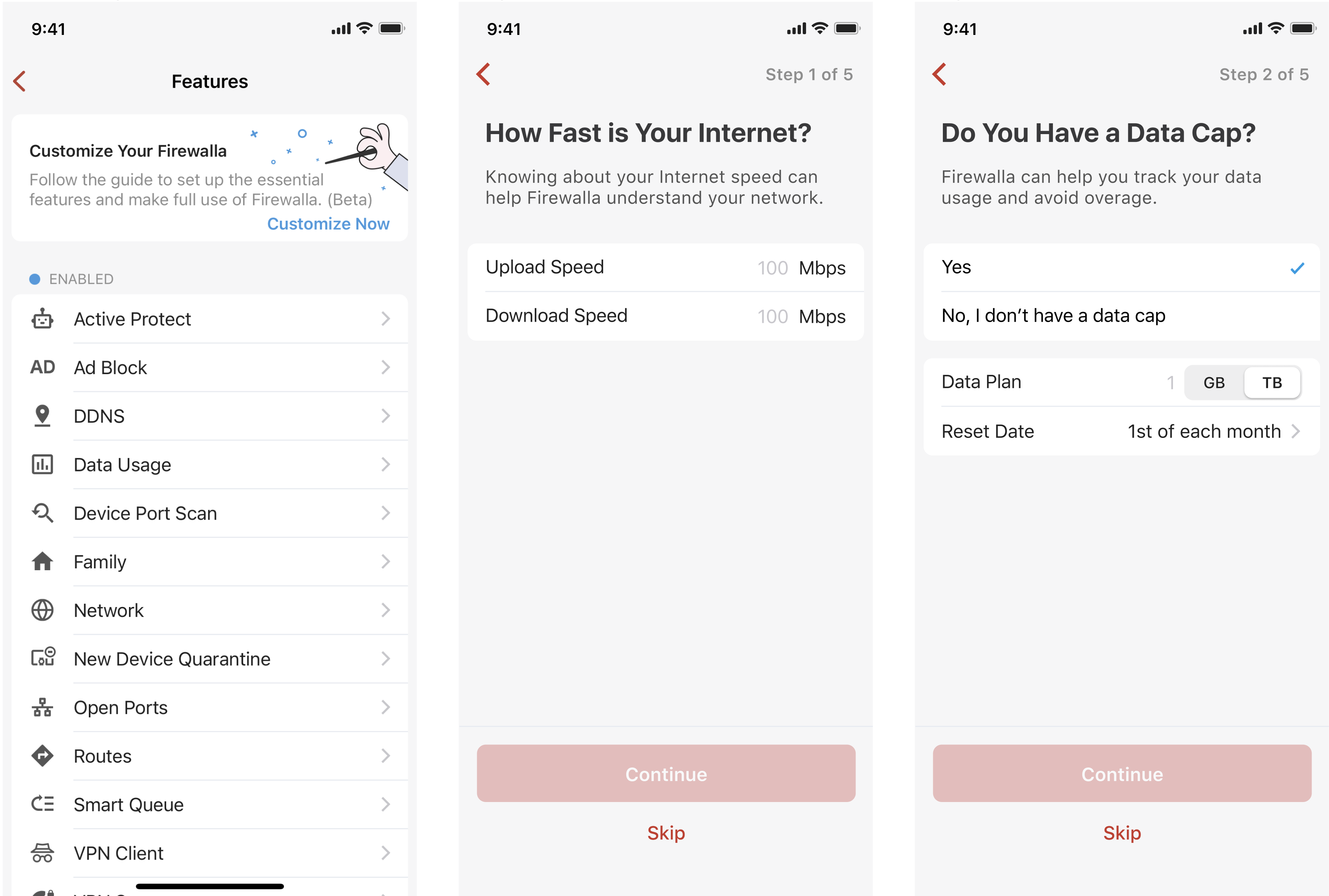

With the 1.52 app release, we've introduced an Auto-Configuration Wizard to help you quickly customize the box by asking a few questions. It can be triggered by tapping Settings -> Features ->  Customize Now. This wizard may turn on/off features, create essential rules and etc; all the configurations can be changed on your app afterward. Watch a video tutorial or read more about this feature in our article about using the Auto-Configuration Wizard.



Setting up Purple for Travel

See Traveling with and without Firewalla for how to set up Firewalla Purple for Travel.
