Tutorial: Troubleshooting Network Reachability Problems with Traceroute

What is Traceroute?

Traceroute is a command-line utility that traces the path data packets follow from your computer to a specific IP address or domain. It reveals each intermediate hop (usually routers) the packets encounter along the way, offering valuable insights into network reachability.

How Does Traceroute Work?

When you execute the traceroute command, your computer sends a series of ICMP (Internet Control Message Protocol) packets with incrementally increasing Time-to-Live (TTL) values. Each packet is designed to expire at an intermediate hop, triggering an ICMP Time Exceeded message. Traceroute records the IP address and response time of each intermediate device based on these messages.

Using Traceroute to Identify Network Reachability Problems:

1. Basic Traceroute Usage: Let's start with a basic example. Open your command prompt or terminal and enter:

   shell

   traceroute example.com

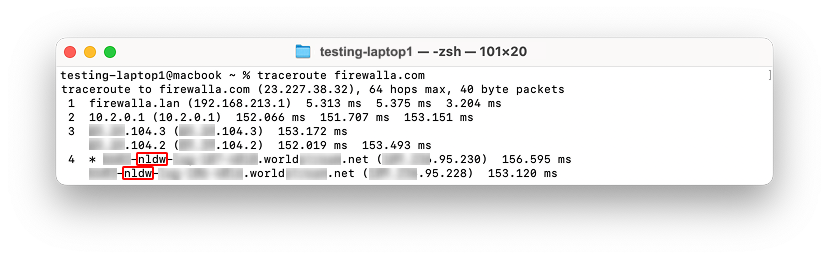

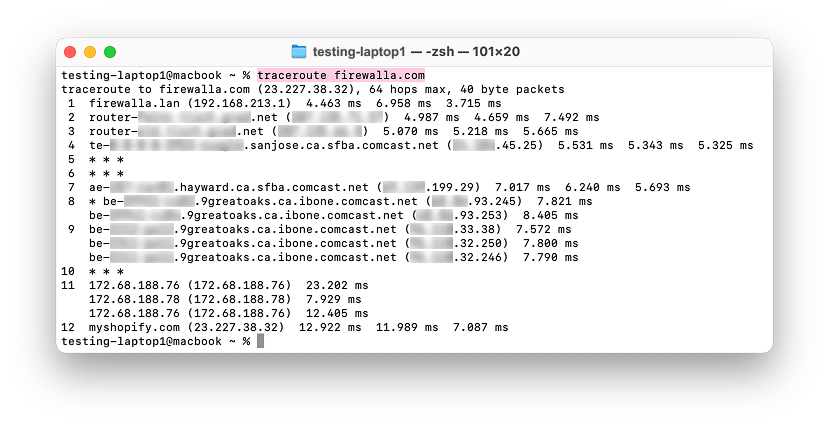

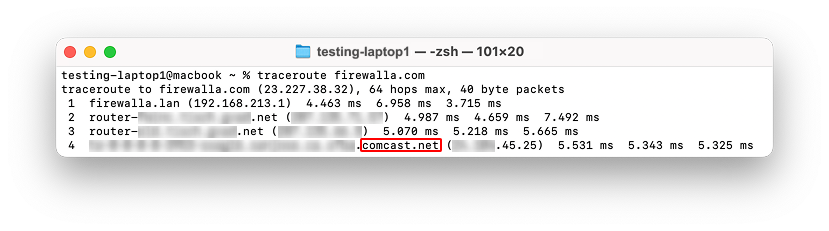

   Replace "example.com" with the domain or IP address you want to trace. Traceroute will display a list of hops, showing IP addresses and response times for each.

2. Analyzing Response Times: Traceroute provides response times (in milliseconds) for each hop. For example, if you observe consistently high response times at certain hops, it may indicate network congestion, slow routers, or connectivity issues at those points.

3. Identifying Hops with "*": Occasionally, you may encounter hops displaying an asterisk (*). This indicates that the ICMP packet did not receive a response from that hop, suggesting network reachability problems.

4. Interpreting "Destination Host Unreachable": If traceroute returns "Destination Host Unreachable" at any hop, it signifies that the IP or domain is unreachable from that point onwards. This could result from routing issues, network outages, or firewall restrictions.

Real-World Examples of Network Reachability Problems Detected with Traceroute:

1. Firewall Blocking Access: Traceroute can reveal when packets reach a firewall but do not progress beyond it. For example:

   1 192.168.1.1 (Router)

   2 203.0.113.1 (Firewall) * * (Blocked by Firewall)

   This indicates that the firewall may be blocking traffic to the intended destination.

2. High Response Times Due to Congestion: High response times at specific hops may indicate network congestion. For instance:

   1 192.168.1.1 (Router)

   2 203.0.113.10 (High Latency: 500ms)

   Consistently high latency at the second hop suggests performance issues along that path.

3. Routing Loop Detected: Traceroute can uncover routing loops where packets become stuck in an infinite loop between routers:

   1 192.168.1.1

   2 203.0.113.5

   3 203.0.113.2

   4 203.0.113.5

   Here, hops 2 and 4 repeat, indicating a routing loop.

Traceroute is a valuable tool for diagnosing network reachability problems. By tracing the path data packets take and highlighting issues along the way, it can help you quickly identify and troubleshoot connectivity problems effectively. Whether you're a network administrator managing a complex infrastructure or an everyday user experiencing connectivity issues, traceroute can be a powerful ally in ensuring a smooth and reliable network connection.
