Ethernet Port Lights

Avatar
Firewalla Team
  • Updated
Follow

Here are the Ethernet link status lights for different Firewalla models:

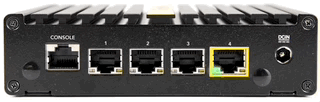

Firewalla Gold, Gold Plus, Gold SE, Purple, and Purple SE



No Internet

Speed: 100 Mbps

Speed: 1000 Mbps

Speed: 2.5 Gbps

Speed: 10 Gbps

Gold Pro


Lights Off


Left: Blinking Green;
Right: Solid Orange (all ports)


Left: Blinking Green;
Right: Solid Orange (all ports)


Left: Blinking Green;
Right: Solid Green (2.5G) or
Solid Orange (10G)


Left: Blinking Green;
Right: Solid Green(10G)

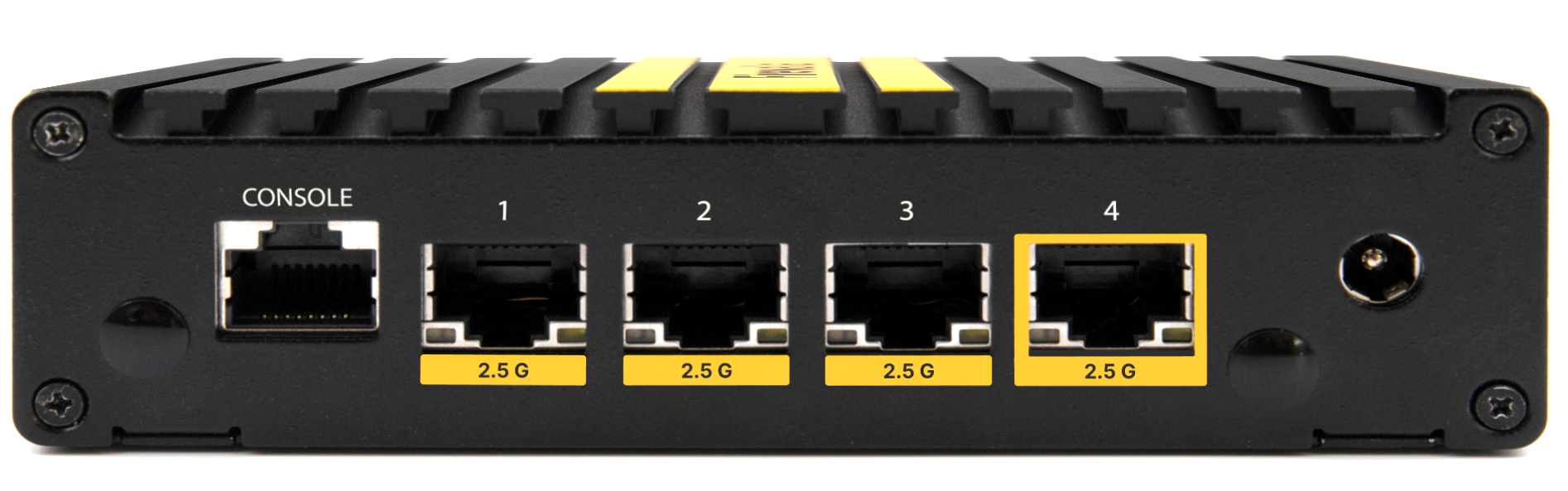

Gold Plus


Lights Off

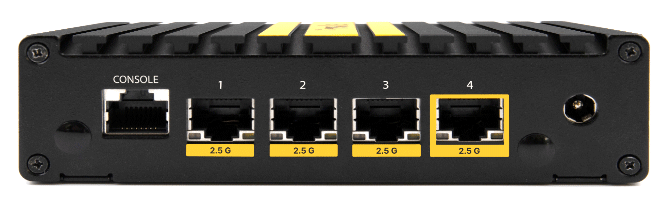

GP 100Mb.gif

Left: Light Off;
Right: Blinking Orange

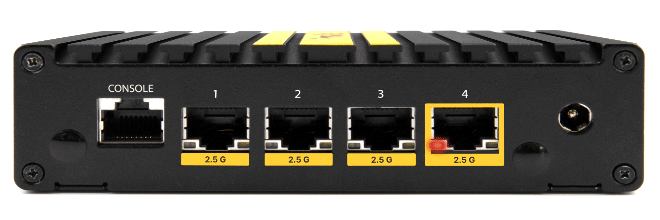

GP 1G.gif

Left: Solid Red;
Right: Blinking Orange

GP 2.5G.gif

Left: Solid Green;
Right: Blinking Orange

-

Gold SE

GSE Status No Connection.gif

Lights Off

GSE Status 100 Mbps.gif

Left: Blinking Green;
Right: Solid Orange (all ports)

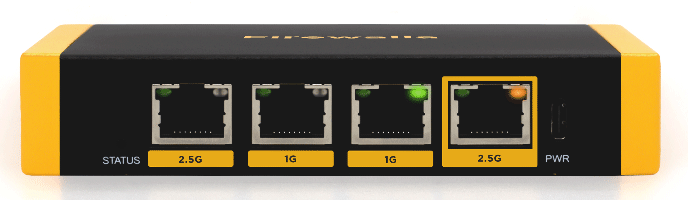

GSE Status 1G.gif

Left: Blinking Green;
Right: Solid Green (1G) or
Solid Orange (2.5G)

GSE Status 2.5G.gif

Left: Blinking Green;
Right: Solid Green (2.5G)

-

Gold/Gold Rev B

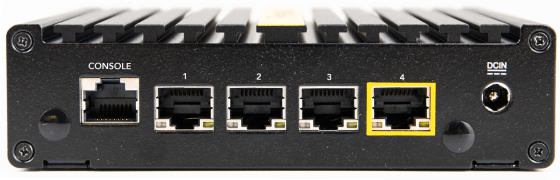

Port lights on Firewalla Gold are not flashing.

Lights Off

Right port light on Firewalla Gold flashing twice steadily

Left: Solid Green;
Right: Blinking Orange

Left Port light on Firewalla Gold is now orange. Right Port flashing twice steadily.

Left: Solid Amber;
Right: Blinking Orange

-

-

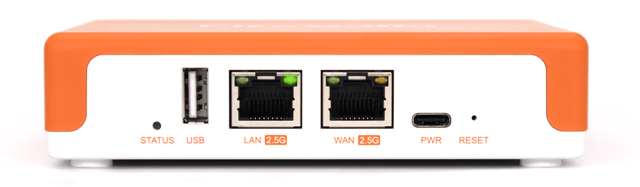

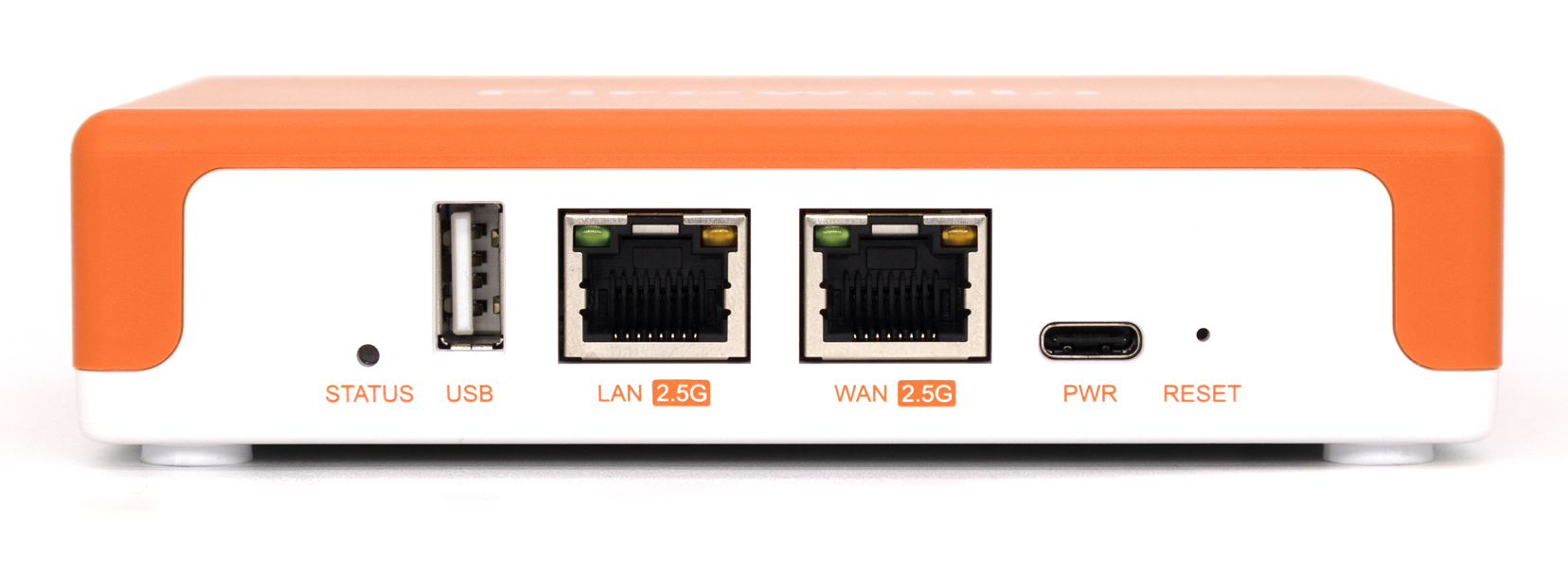

Orange

Lights Off

Left: Blinking Green;
Right: Solid Orange

Left: Blinking Green;
Right: Solid Orange

Left: Blinking Green;
Right: Solid Green

-

Purple

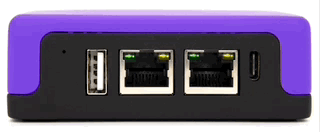

Pinhole light on Firewalla Purple flashing in 3 second intervals

Lights Off

Left Port light on Firewalla Purple flashing steadily.

Left: Blinking Green;
Right: Light Off

Right Port light on Firewalla Purple is now orange. Right Port flashing steadily.

Left: Light Off;
Right: Blinking Orange

-

-

Purple SE

PSE No Connection.gif

Lights Off

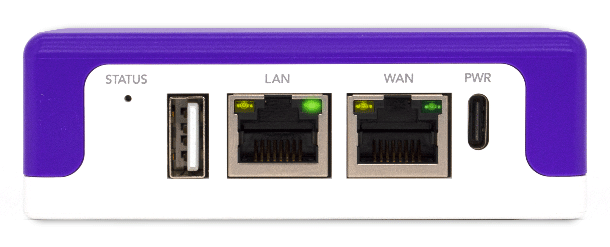

PSE 100Mb.gif

Left: Blinking Orange;
Right: Solid Green

PSE 100Mb.gif

Left: Blinking Orange;
Right: Solid Green

-

-



Firewalla Switch X and Switch SE

Note:

  • The Left LED is always SOLID.
  • The Right LED is always SOLID for link and BLINKING for activity.


No Link

Speed: 100 Mbps

Speed: 1000 Mbps

Speed: 2.5 Gbps

Speed: 5 Gbps

Speed: 10 Gbps

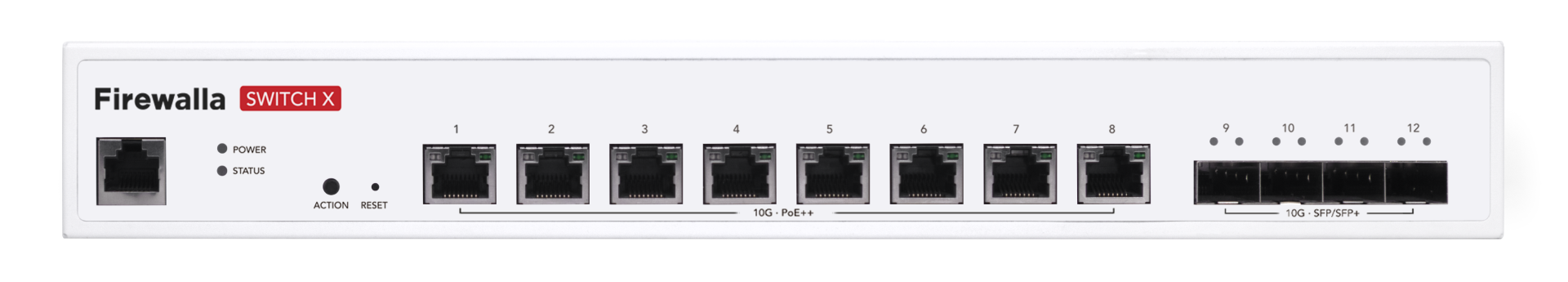

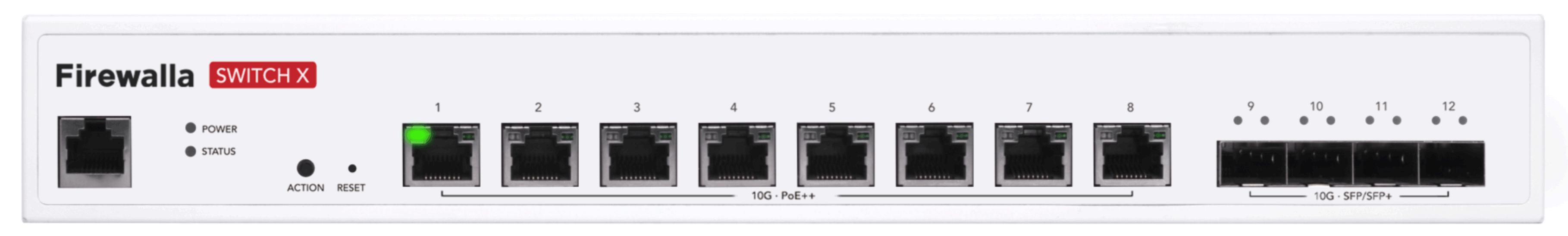

Switch X

Lights Off

(RJ45) Left: Light Off
Right: Green

(RJ45, SFP+) Left: Orange
Right: Green

(RJ45) Left: Green
Right: Green

(RJ45) Left: Green
Right: Green

(RJ45, SFP+) Left: Green
Right: Green

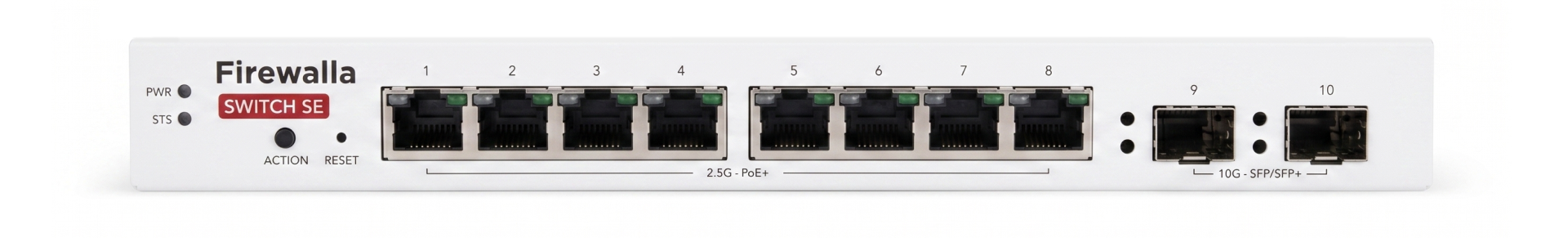

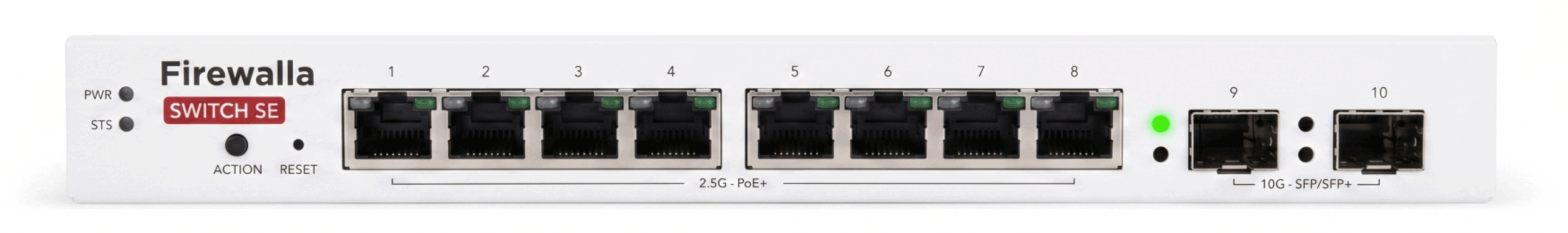

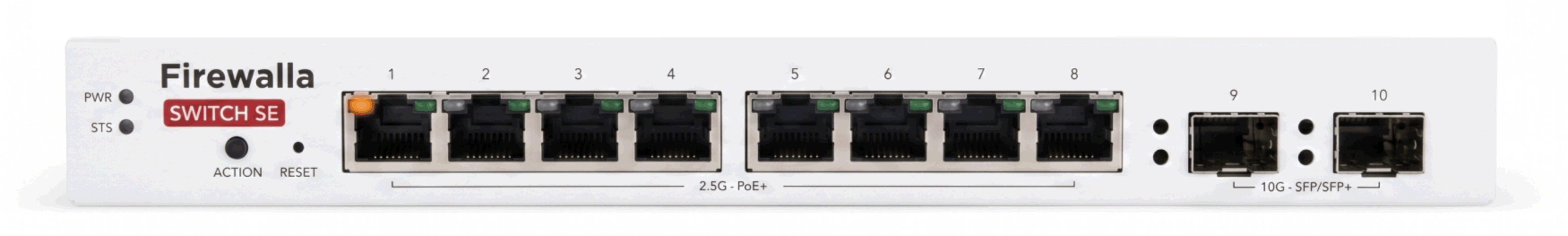

Switch SE

Lights Off

(RJ45) Left: Orange
Right: Green

(RJ45) Left: Orange
Right: Green

(SFP+) Top: Orange
Bottom: Green

(RJ45) Left: Green
Right: Green

-

(SFP+) Top: Green
Bottom: Green



Firewalla Red, Blue, Blue Plus



Red

Blue

Blue Plus

Booting Up

Port lights on Firewalla Red simultaneously flashing steadily

Left: Blinking Green;
Right: Blinking Orange

Port lights on Firewalla Blue alternatively flashing

Left: Blinking Green;
Right: Blinking Orange

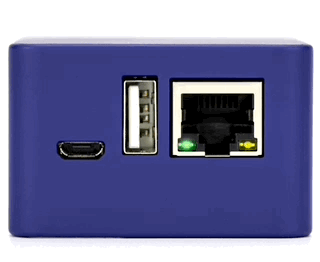

Right port light on Firewalla Blue Plus steadily

Left: Solid Green;
Right: Blinking Orange

Connection
Stable

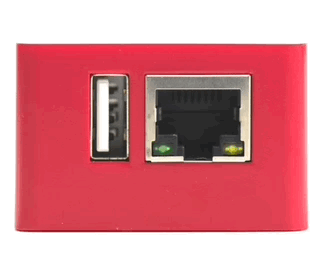

Left Port light on Firewalla Red flashing steadily

Left: Blinking Green;
Right: Light Off

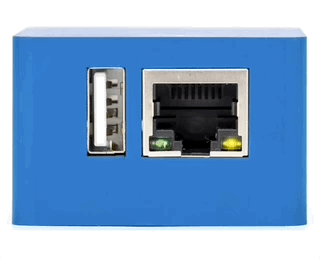

Left Port light on Firewalla Blue flashing twice steadily

Left: Blinking Green;
Right: Solid Orange

Right Port light on Firewalla Blue Plus flashing steadily

Left: Solid Green;
Right: Blinking Orange

No Internet

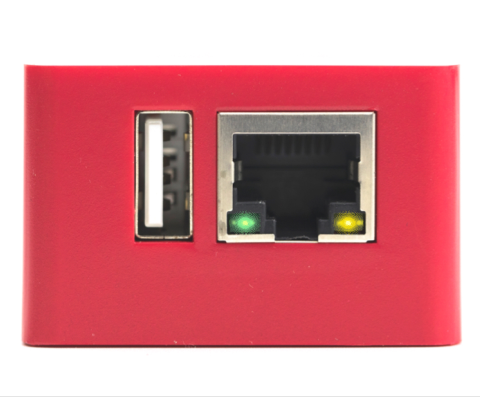

Port lights on Firewalla Red not flashing.

Left: Solid Green;
Right: Solid Orange

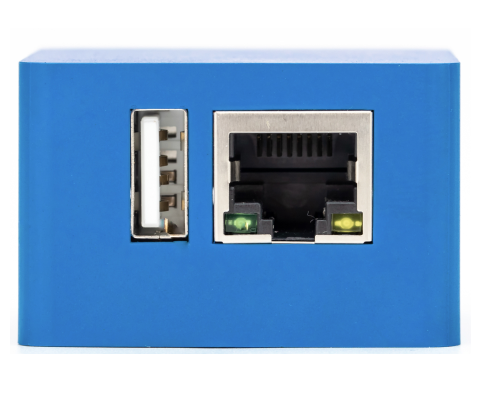

Port lights on Firewalla Blue not flashing.

Lights Off

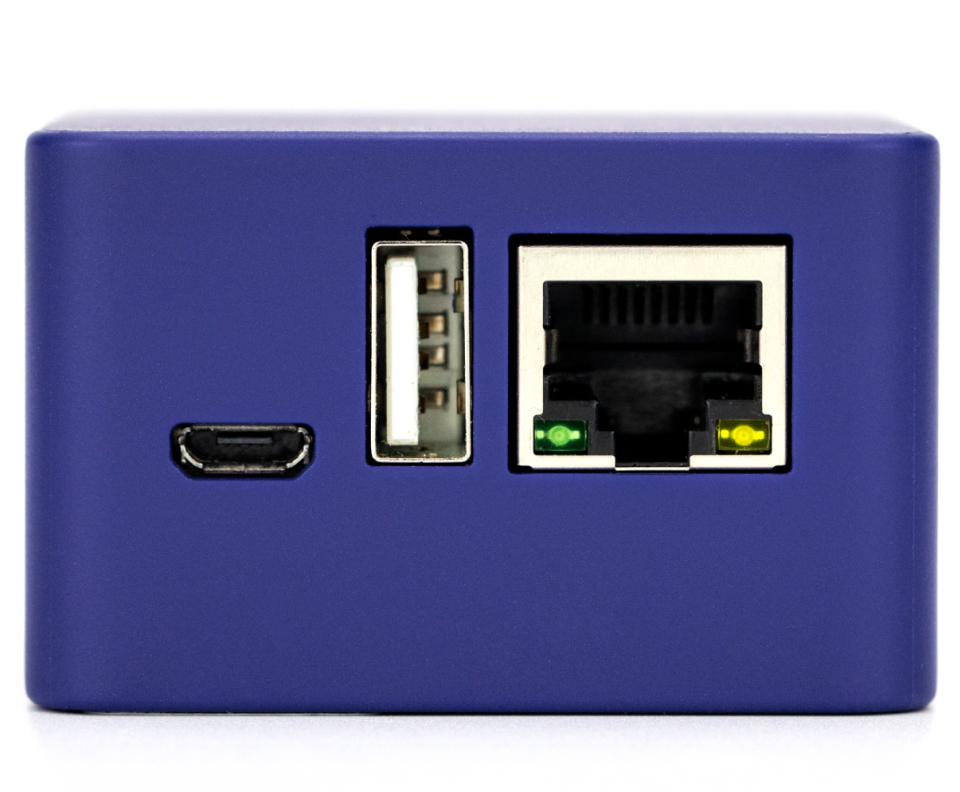

Port lights on Firewalla Blue Plus not flashing.

Lights Off
