Firewalla Wi-Fi Products Data Sheet (US version)

	Desktop (AP7D)	Ceiling Mount (AP7C)	Orange (draft)
Mechanical
Dimensions	138 x 80 x 190 mm (5.43 x 3.15 x 7.48")	190.3 x 190.3 x 34.7 mm (7.49 x 7.49 x 1.37")	128.5 x 83 x 30 mm (5.06 x 3.27 x 1.18")
Unit Weight	627 g (1.39 lb)	713 g (1.57 lb)	244 g (0.54 lb)
Enclosure material	PC (Polycarbonate)	PC (Polycarbonate), Metal	PC (Polycarbonate) + ABS
Mount material	N/A	Polycarbonate/Acrylonitrile Butadiene Styrene	N/A
Interfaces
Networking interface	(1) 10 GbE RJ45 port (1) 2.5 GbE RJ45 port	(1) 10 GbE RJ45 port (PoE+) (1) 2.5 GbE RJ45 port	(2) 2.5 GbE RJ45 port
Management interface	Ethernet	Ethernet	Ethernet
Power
Power supply	12V/5A DC (US power plug)	12V/2.5A DC (not included in the package）	20W PD Adapter
Max. power consumption	30W	25.5W	15.5W
PoE	None	PoE+	None
Max. TX power
2.4 GHz	24 dBM	24 dBM	21 dBM
5 GHz	25 dBM	25 dBM	21 dBM
6 GHz	22 dBM	22 dBM	N/A
MIMO
2.4 GHz	2 x 2 (DL/UL MU-MIMO)	2 x 2 (DL/UL MU-MIMO)	2 x 2 (DL/UL MIMO)
5 GHz	2 x 2 (DL/UL MU-MIMO)	2 x 2 (DL/UL MU-MIMO)	2 x 2 (DL/UL MIMO)
6 GHz	4 x 4 (DL/UL MU-MIMO)	2 x 2 (DL/UL MU-MIMO)	N/A
Max. data rate
2.4 GHz	688 Mbps (BW40)	688 Mbps (BW40)	688 Mbps (BW40)
5 GHz	2.88Gbps (BW160)	2.88Gbps (BW160)	2.88Gbps (BW160)
6 GHz	11.5 Gbps (BW320)	5.764 Gbps (BW320)	N/A
Antenna gain
2.4 GHz	5.2 dBi	4.5 dBi	2.6 dBi
5 GHz	6.5 dBi	6.9 dBi	3.7 dBi
6 GHz	6 dBi	6.5 dBi	N/A
Hardware
Antenna	Internal with omni patterns	Internal with omni patterns	Indoor embedded Omni-directional antenna
LEDs	R/G/B	R/G/B	R/G/B
Button	Factory reset	Factory reset	Factory reset
USB (not used)	(1) USB 2.0 Type A	(1) USB 2.0 Type A	(1) USB 2.0 Type A
Ambient operating temperature	-5 to 40° C (23 to 104°F)	-5 to 40° C (23 to 104°F)	0°C ~ +45°C (32 to 113°F)
Ambient operating humidity	5 to 95% non-condensing	5 to 95% non-condensing	5 to 95% non-condensing
Storage temperature	-40°C to +70°C (-40°F to 158°F)	-40°C to +70°C (-40°F to 158°F)	-20°C to +70°C (-4°F to 158°F)
Certifications	FCC, ETL	FCC, ETL	FCC
Software
WiFi standards	802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)	802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)	802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security	WPA-PSK (WPA/WPA2/WPA3/PPSK) WPA-Enterprise (WPA/WPA2/WPA3)	WPA-PSK (WPA/WPA2/WPA3/PPSK) WPA-Enterprise (WPA/WPA2/WPA3)	WPA-PSK (WPA/WPA2/WPA3) WPA-Enterprise (WPA/WPA2/WPA3) No PPSK support
BSSID	10 per radio	10 per radio	10 per radio
VLAN	802.1Q	802.1Q	802.1Q
Concurrent clients	300+	300+	100+
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps	6, 9, 12, 18, 24, 36, 48, 54 Mbps	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps	1, 2, 5.5, 11 Mbps	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps	6, 9, 12, 18, 24, 36, 48, 54 Mbps	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)	7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/320)	7.3 Mbps to 5.764 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)	7.3 Mbps to 2.88 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160)

Firewalla AP7 - Polar Plots

AP Radiation Patterns refer to a graphical representation of how WiFi signals from the Firewalla AP7 Desktop model broadcasts its radio waves based on the arrangement of the antennas inside the Firewalla access point. The antenna pattern depicts how the antennas receive and transmit signals, and how they extend in various directions in space. These graphs are flat representations in a 360-degree format, also known as polar plots.

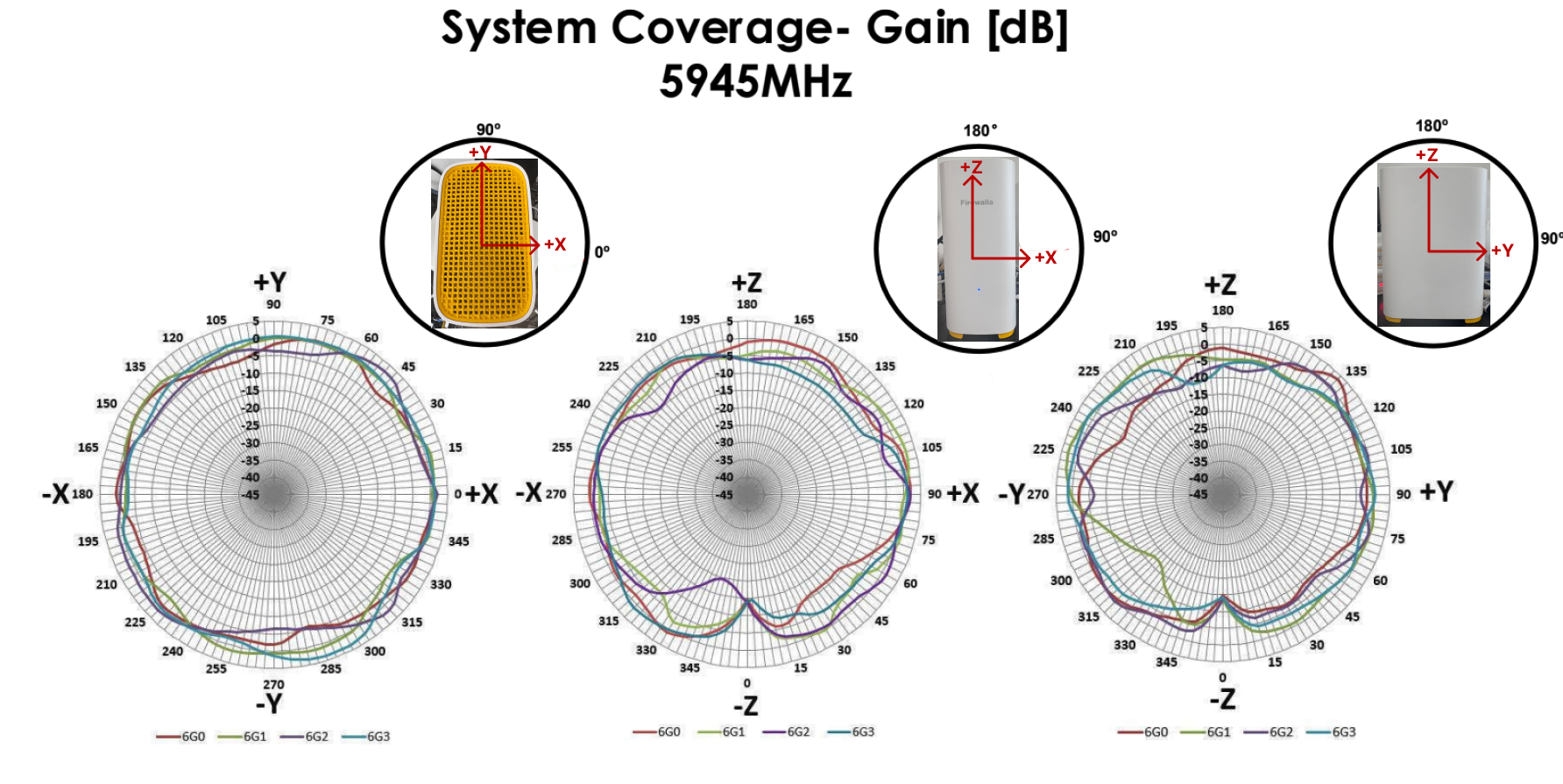

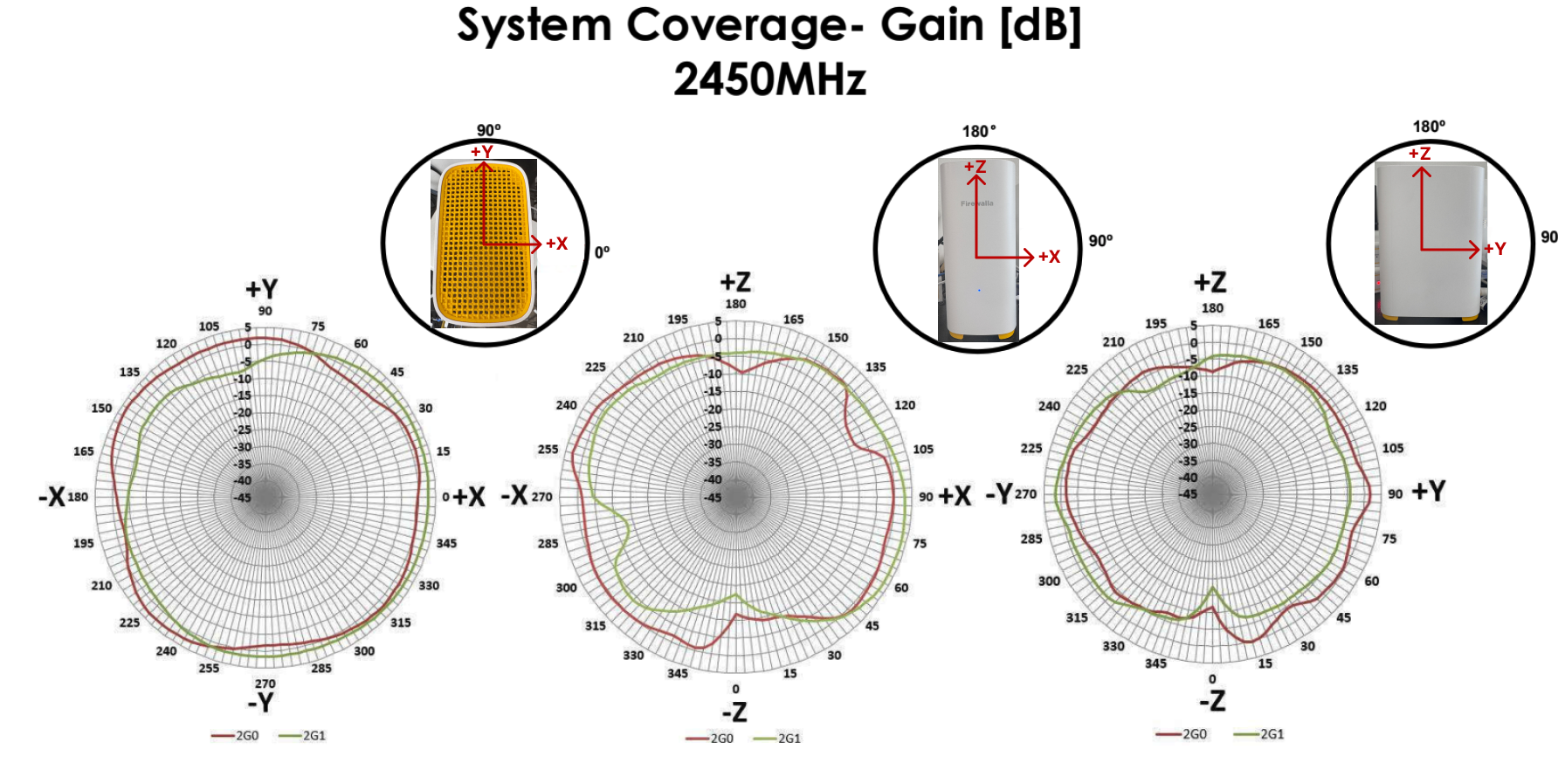

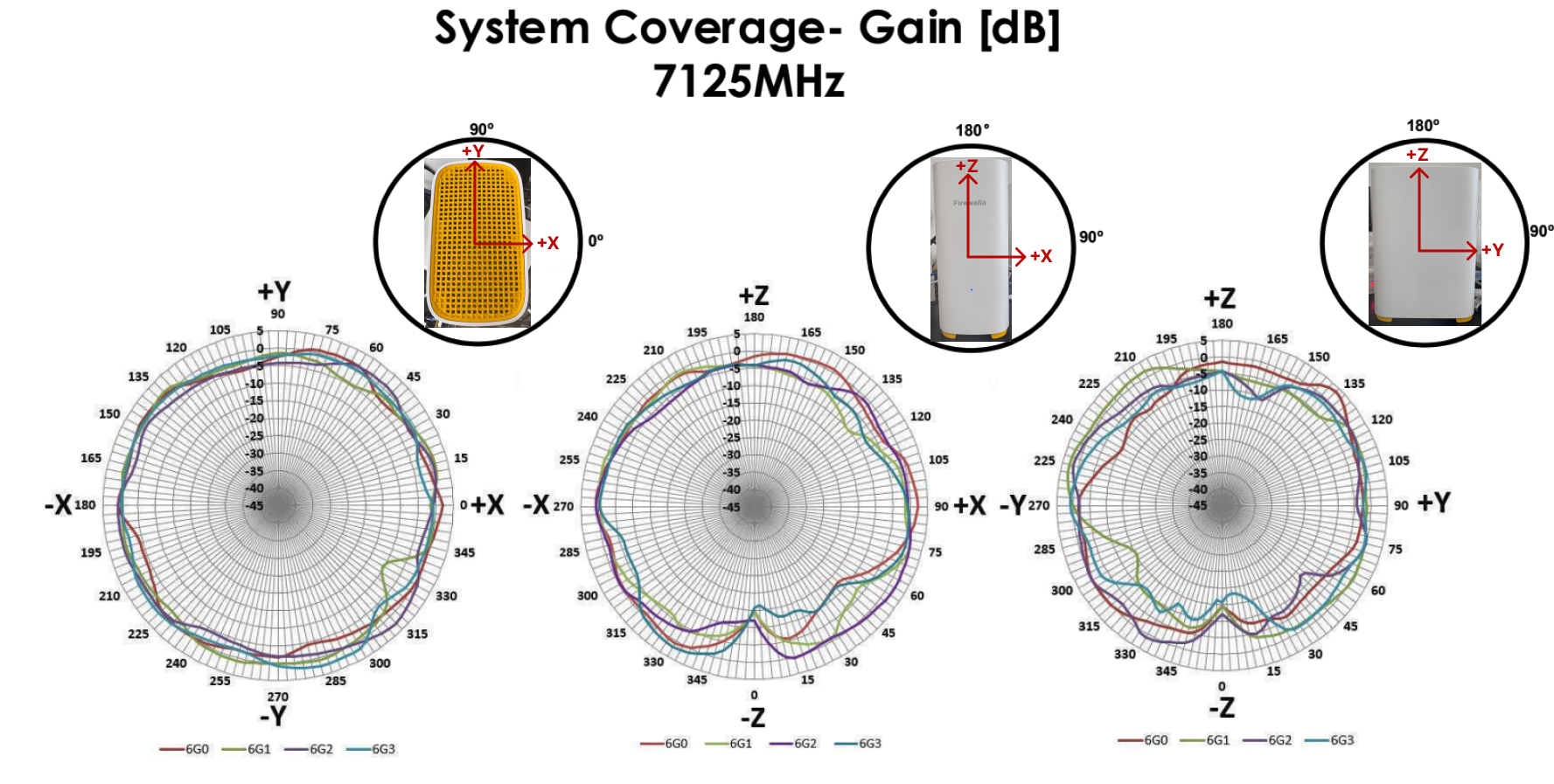

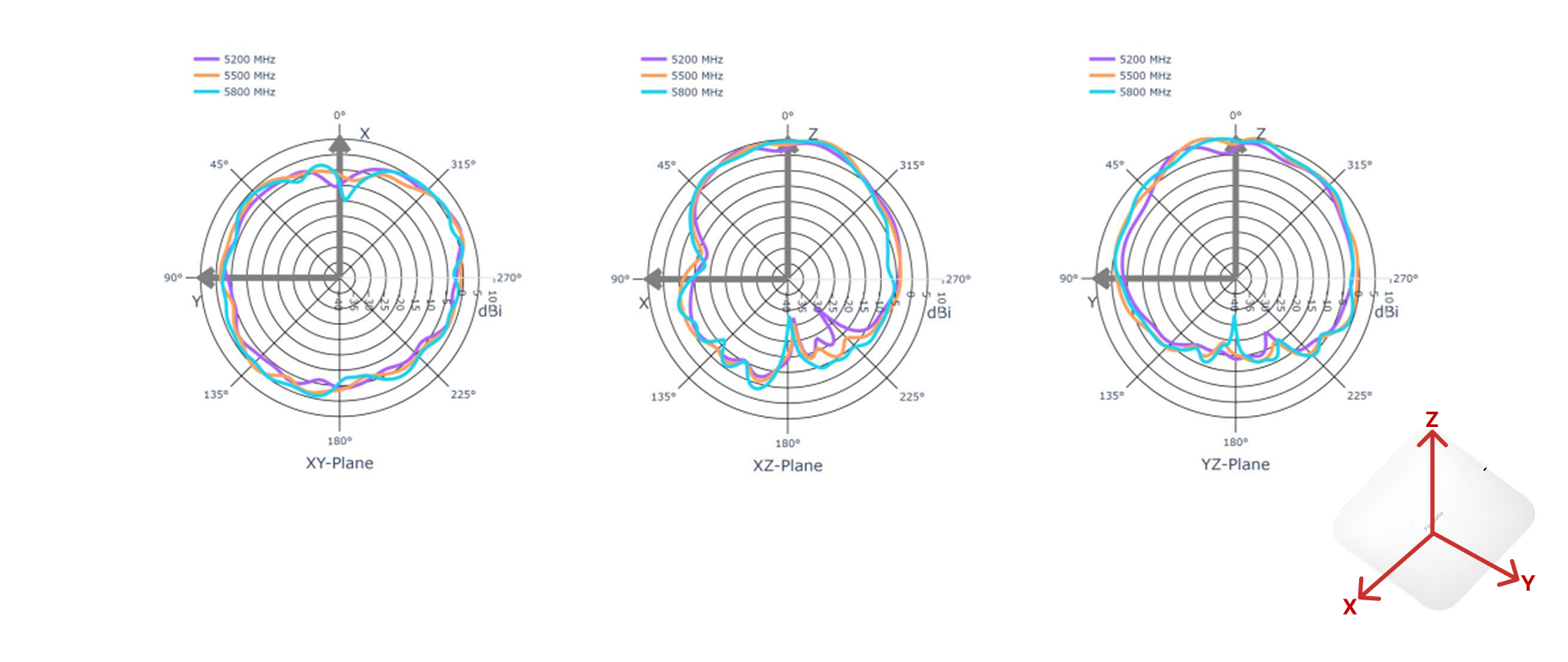

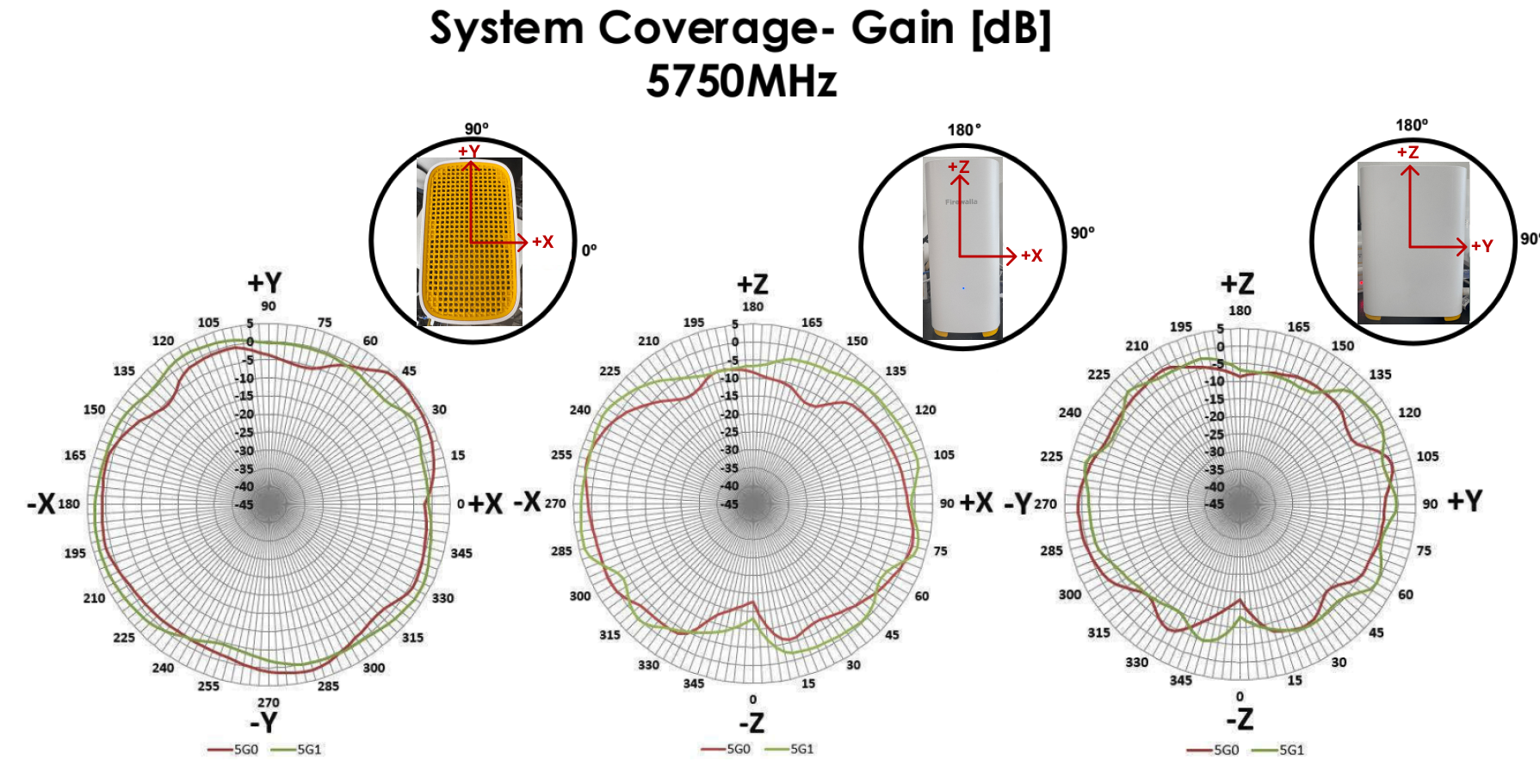

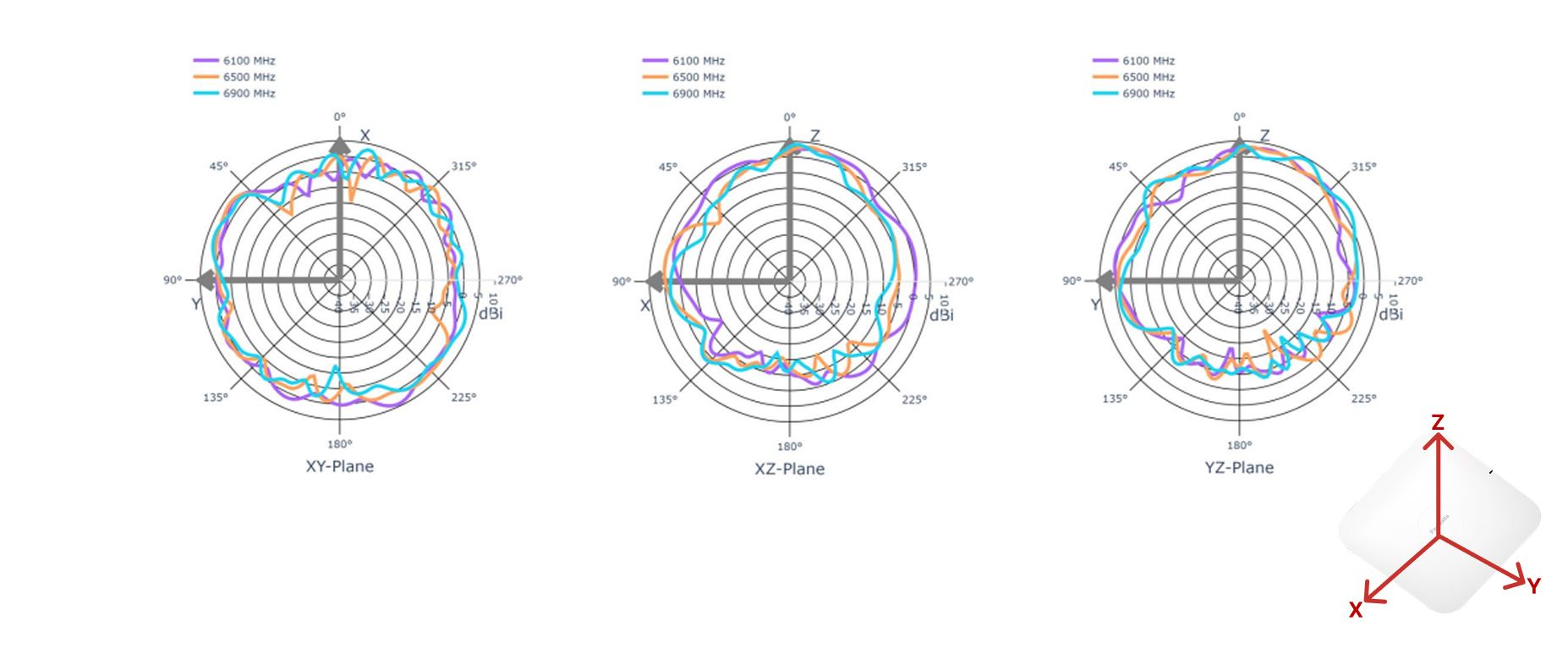

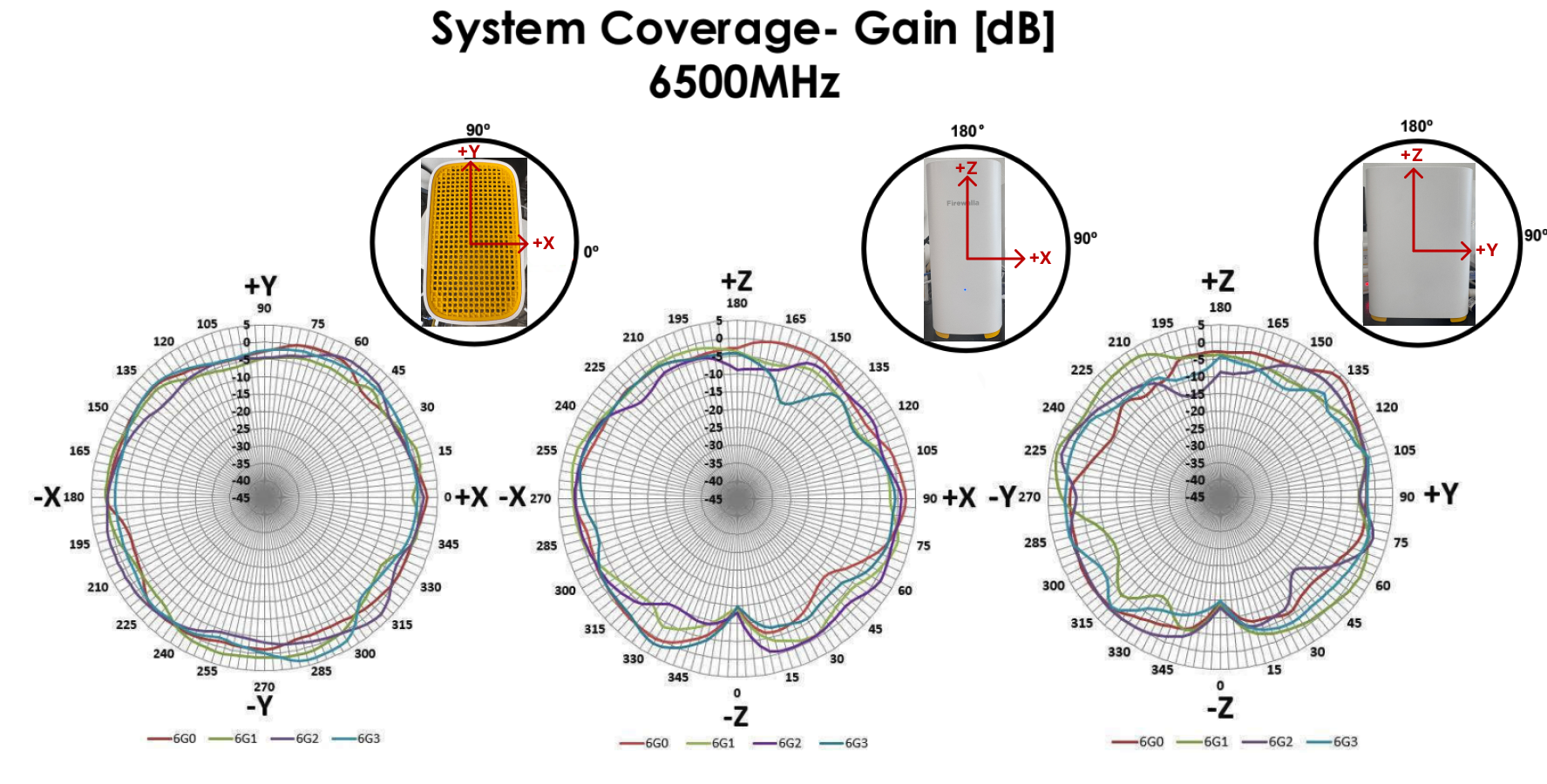

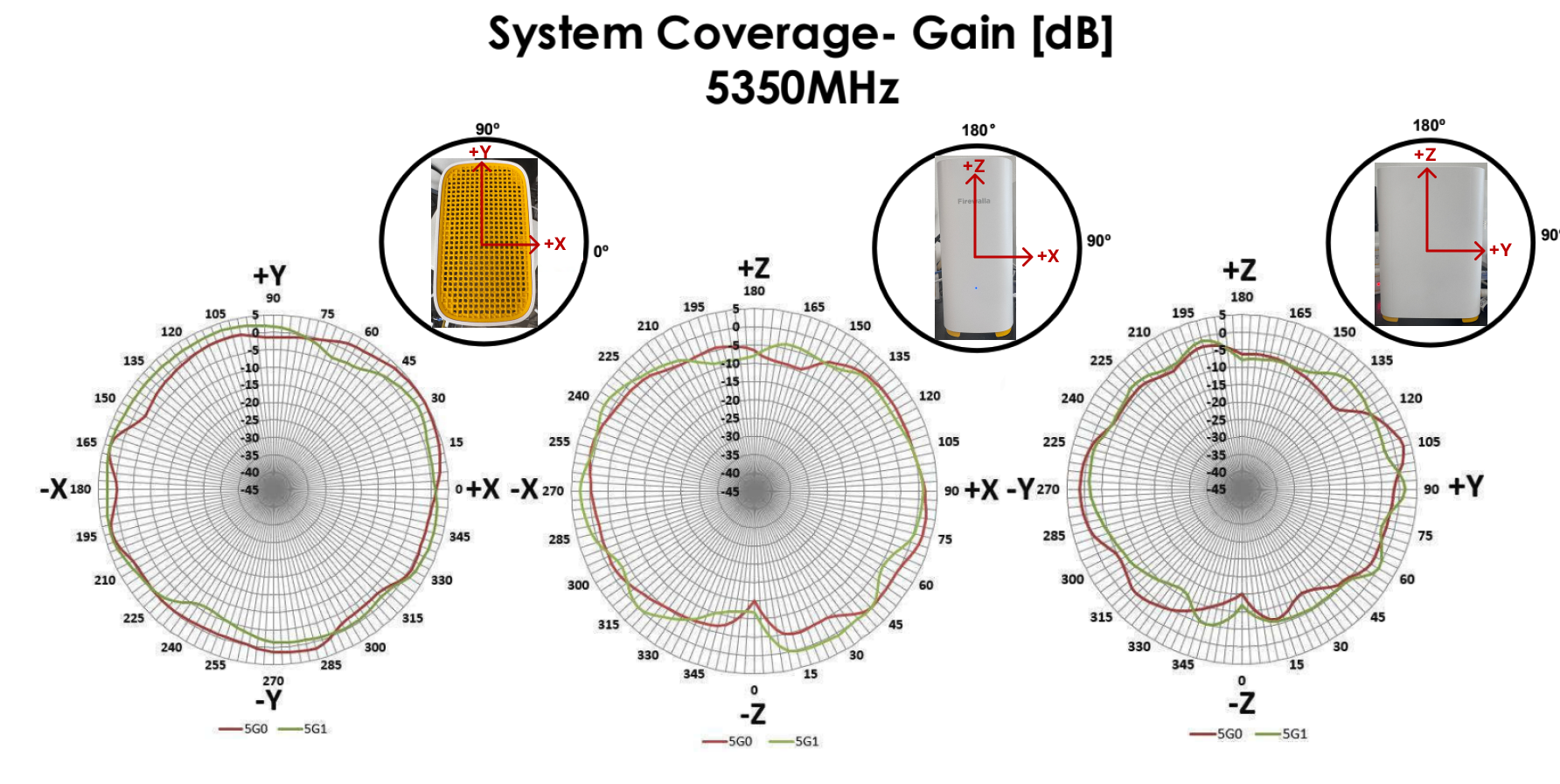

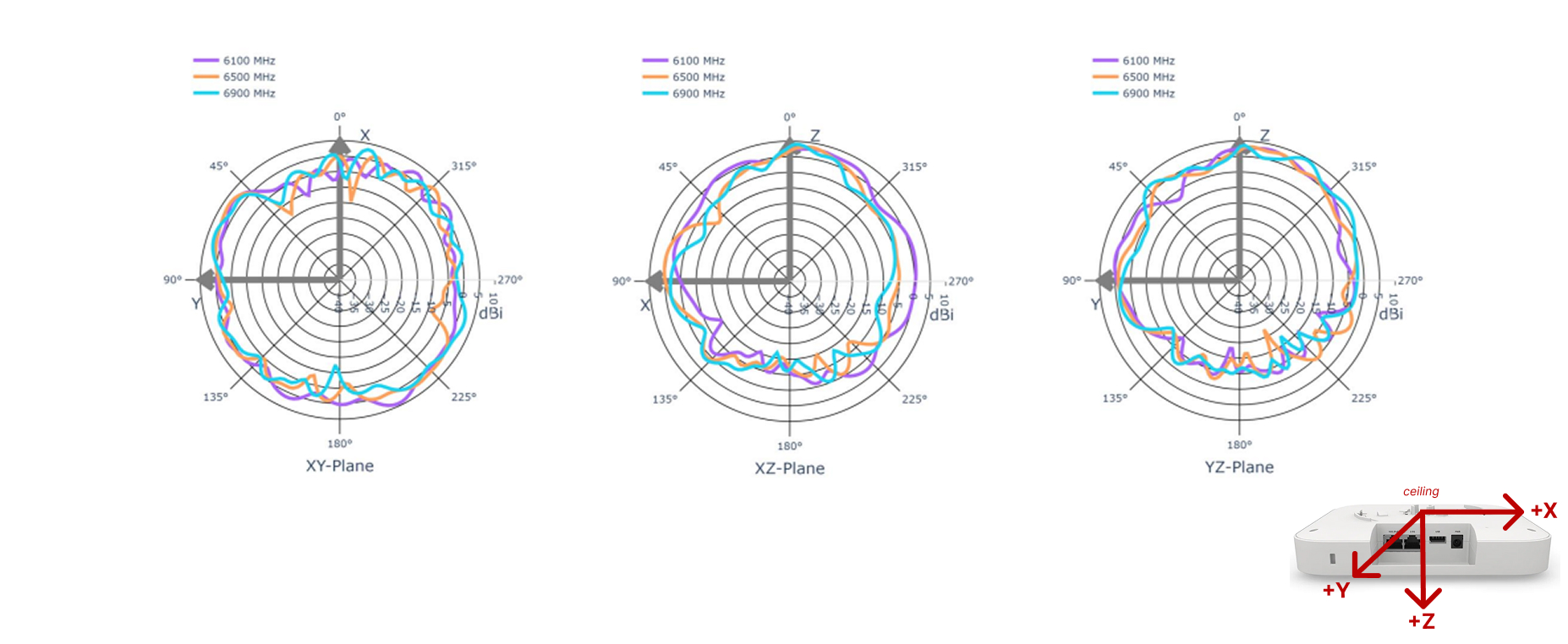

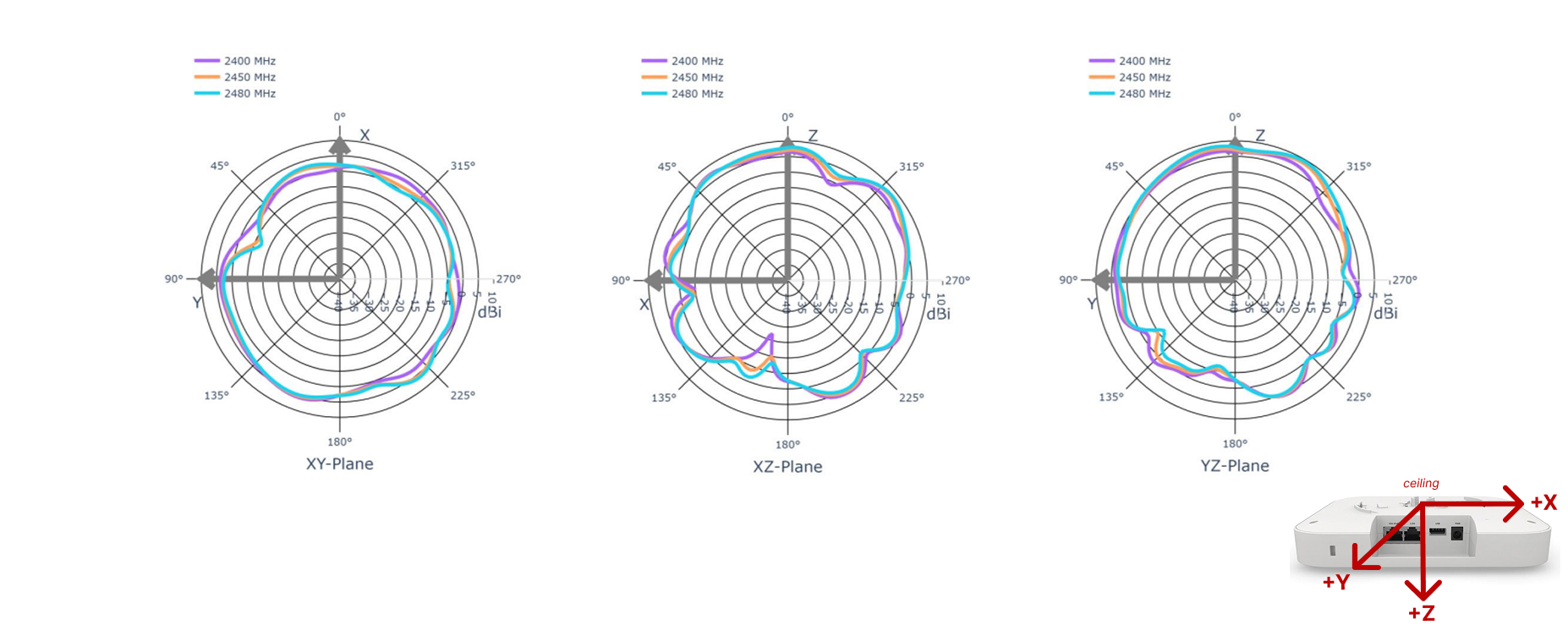

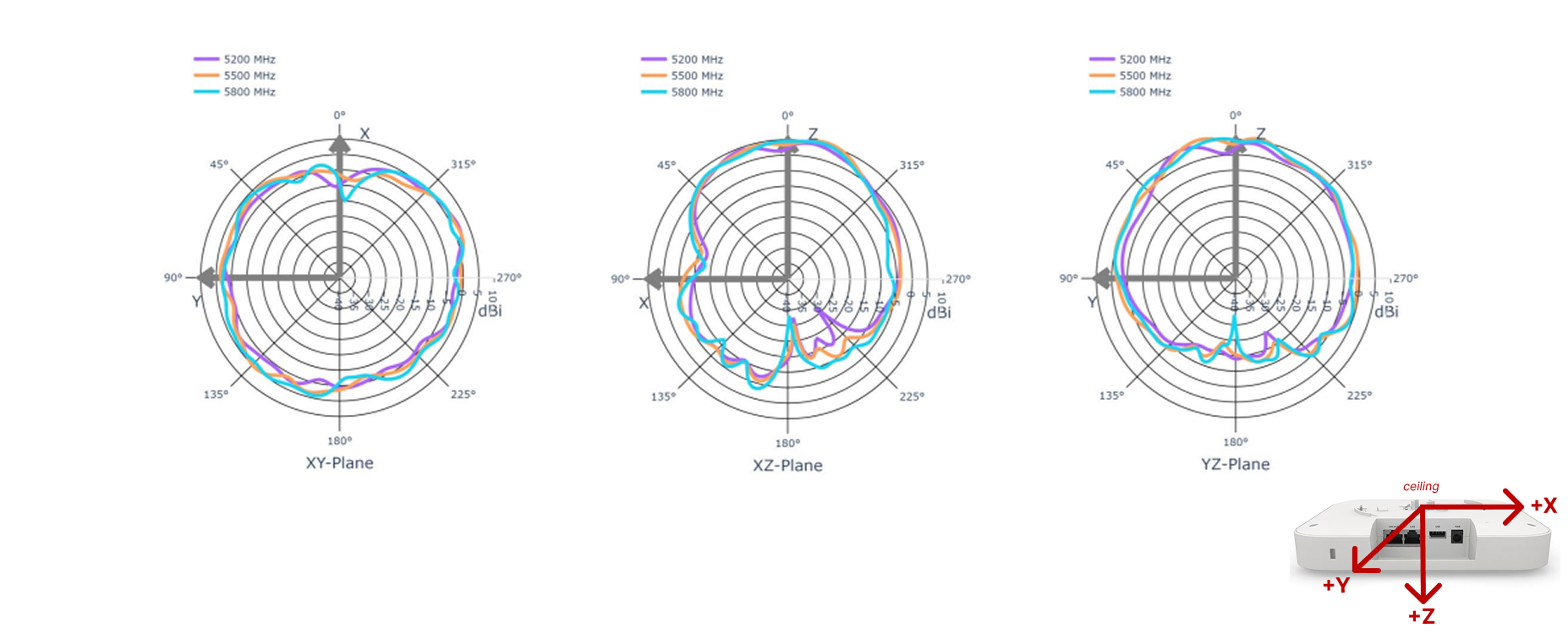

In each polar plot below, the radiation pattern for each megahertz (MHz) is depicted from three different point of views according to the X, Y, and Z axis.
