What is Policy-Based Routing?
In networking, network traffic is usually managed by the system's routing table. This routing table can either be static or dynamic based on your network topology. Policy-Based Routing (PBR) enables you to set policies that control your network's routing decisions. With PBR, you can:
- Route specific types of traffic to your VPN servers (as long as the VPN is connected).
- Route traffic to any of your WAN connections, if you have a dual-WAN setup.
Watch the video below for a tutorial of how to use Firewalla Policy-Based Routing.
- How does Firewalla Policy-Based Routing work?
- What are some use cases for Policy-Based Routing?
- How do I use Policy-Based Routing?
- Policy-Based Routing Examples
How does Firewalla Policy-Based Routing work?
Traditional Policy-Based Routing works on the IP layer and the services the network is running. Firewalla Policy-Based Routing is much more flexible and can be mapped to traffic category (gaming, video, etc.).
- Firewalla PBR is content-aware.
- PBR will only work if you have multiple WAN or VPN connections.
- The full PBR feature is only available on Firewalla Gold series and Purple series boxes.
- Only routing to a VPN server is available on the Blue Plus.
What are some use cases for Policy-Based Routing?
Since Firewalla Policy-Based Routing lets you direct flows based on the type of traffic, it's powerful enough to help you make some significant security- and bandwidth-related adjustments to your network. For example, you can:
- Route all video traffic to a 3rd party VPN server
- Routing all traffic on a PC to the standby WAN
- Running Zoom or Gaming from a low latency WAN interface
- Running VPN Client traffic to a specified WAN or VPN Client
How do I use Policy-Based Routing?

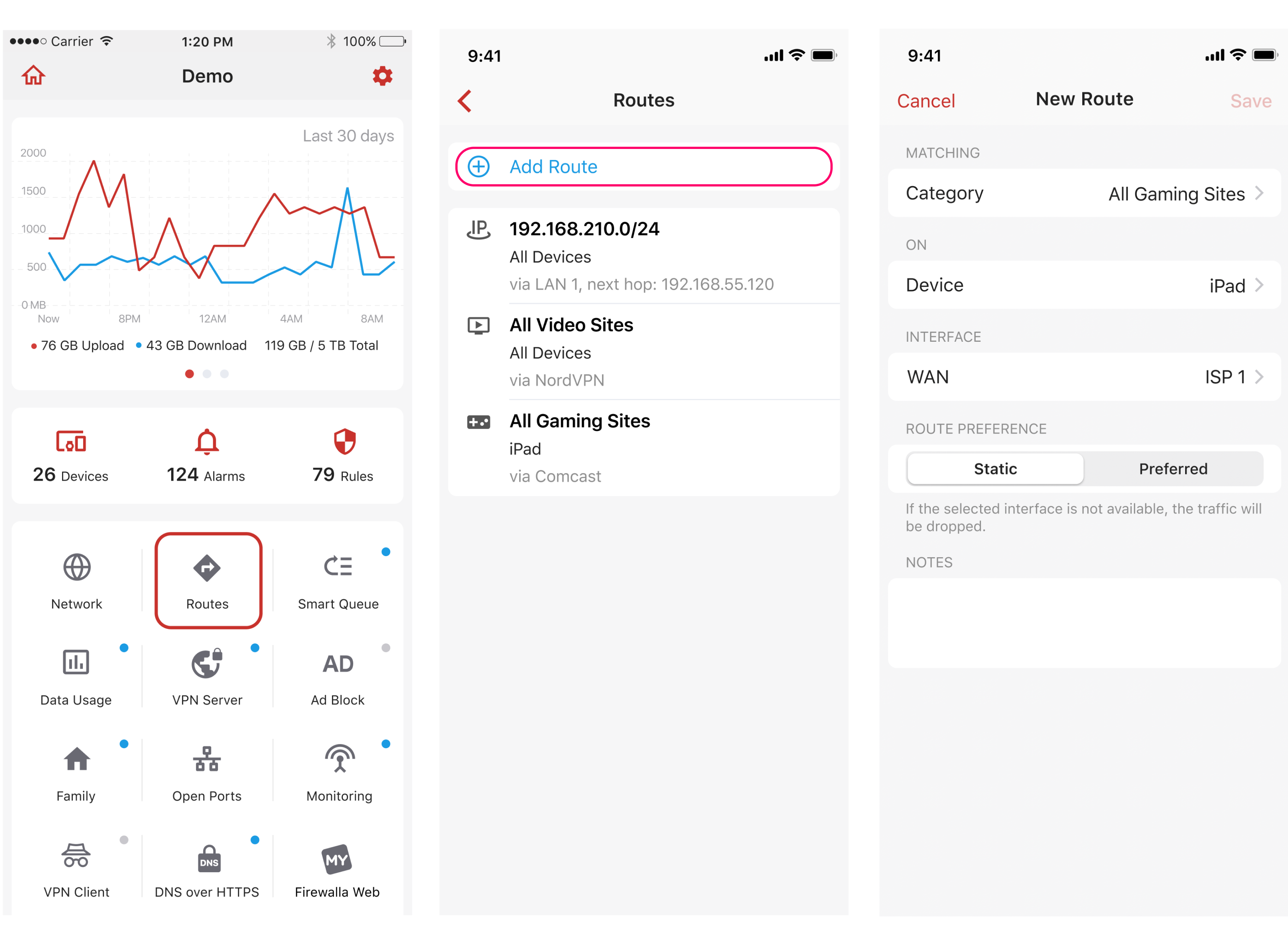

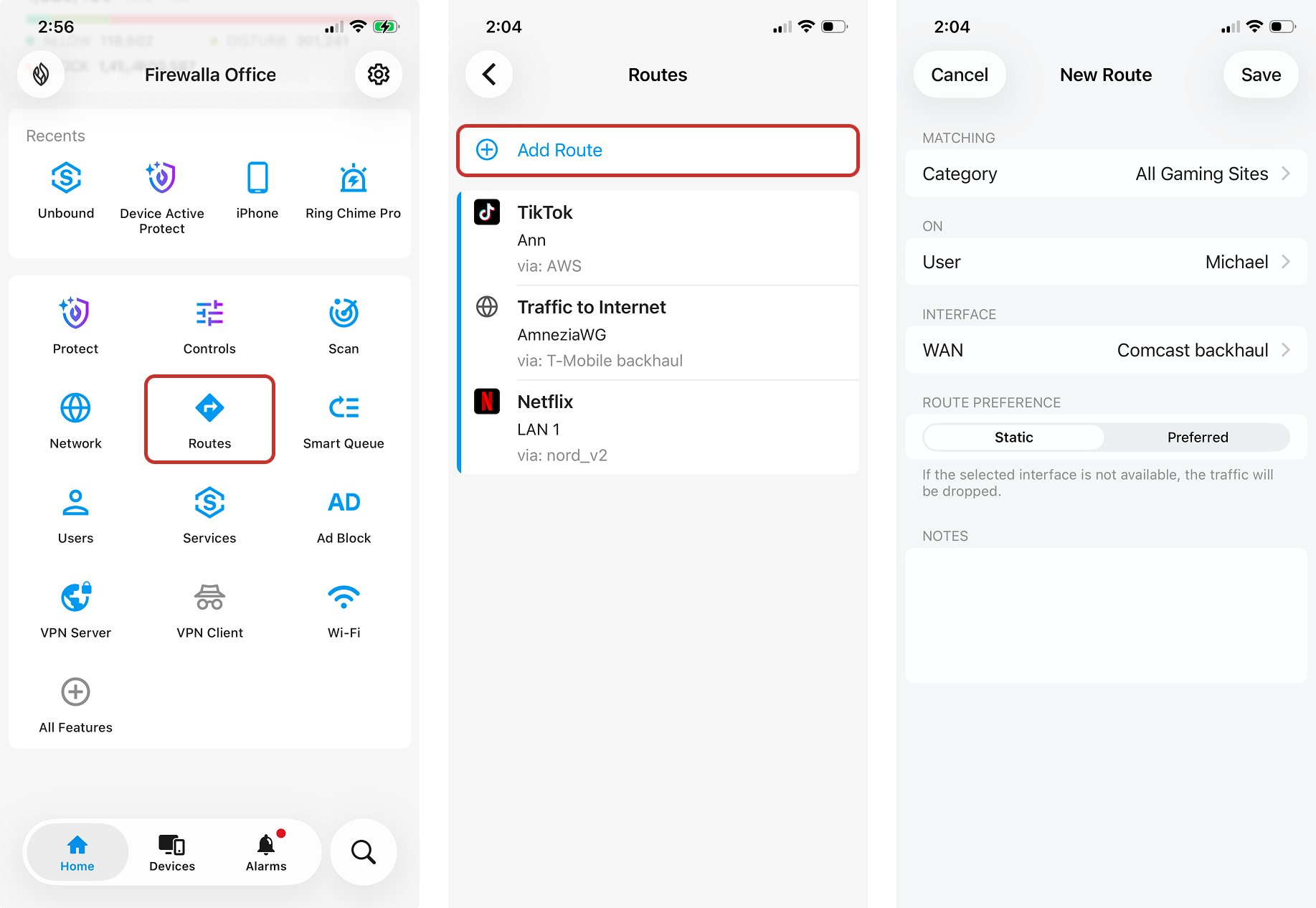

On your box's main page, tap Routes -> Add Route, specify a type of traffic, and choose a device/group/network. Then, route it to any VPN or WAN connection.
You can also specity a Route Preference. For each route, you can select either Static, which drops the traffic if the selected interface is not available; or Preferred, which allows the traffic through an alternate route if the selected interface is not available. Watch a video tutorial or read more about this feature in our 1.52 App Release Notes.
Learn more about how to use PBR with VPN and Multiple-WAN.

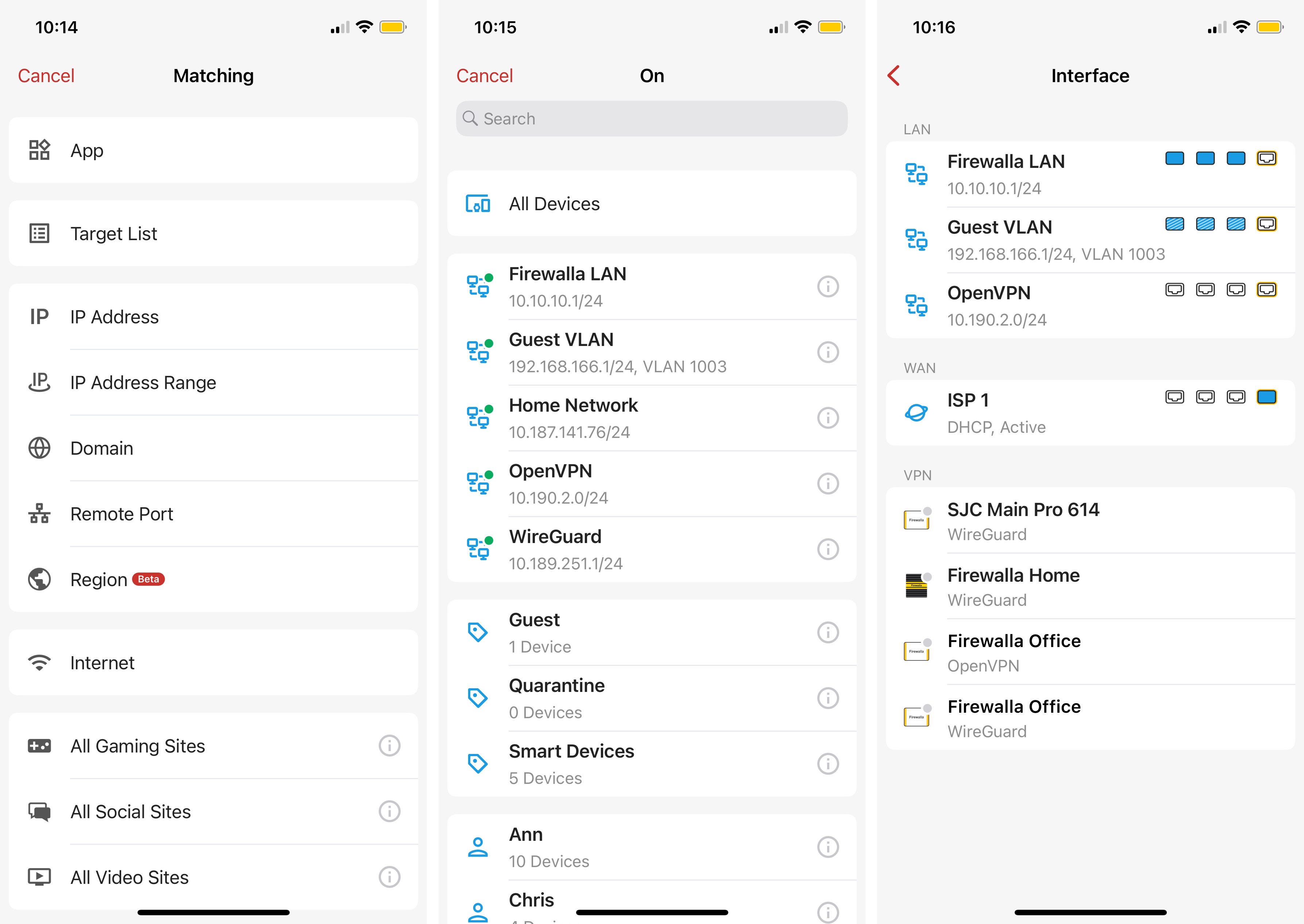

The following Targets are supported for Routes:
- Target List (Beta)
- Domain
- IP Address
- IP Address Range
- Remote Port
- Region
- Internet
- All Gaming Sites
- All Social Sites
- All Video Sites
When there is conflict between Routes, Routes with more specific target and device scopes take precedence. The priority list for device scope is Device > Group > Network > Global (All Devices).
- When there is conflict, Device/Group rules will take precedence over Network rules.
- When there is conflict, Network rules will take precedence over Global rules.
If the Routes are applied at the same level, the priority then depends on the matching targets, which are IP/Port > CIDR > Domain/App > Target List/Category > Region > Internet.
Network Flows Shortcut:
Network Flows are a history of all inbound and outbound network traffic on your network. If you need to send certain types of flows to another WAN or VPN, tap on a flow, then tap the "Route" button at the bottom of the page. You'll be prompted to create a new Route based on the destination/source and the device/group/network.
Policy-Based Routing Examples
Routing Traffic to a VPN:
To route all video traffic on device Annies-iPhone to a StrongVPN server:
- Tap Routes on your box's main page.
- Tap Add Route.
- Matching: All Video Sites
- On: Annies-iPhone
- Interface: StrongVPN (set up your VPN connection in the VPN Client feature beforehand)
- Preference: Static if you want Firewalla to drop the traffic if the VPN is unavailable or Preferred if you want to send the traffic over another interface if the VPN is unavailable
- Tap Save
With this route, all traffic to video sites will be routed to StrongVPN when the VPN is connected. Since Preferred is selected, video traffic will be routed through another path if the VPN is unavailable.
Learn more about how to use PBR with VPN and Multi-WAN setups.
Connecting to a Starlink Dish Interface:
If you have a Starlink dish and want to access the management interface, you can use a Route to help you:
- Tap Routes on your box's main page.
- Tap Add Route.
- Matching: IP Address Range 192.168.100.0/24
- On: Network LAN 1
- Interface: Starlink
- Preference: Static if you want Firewalla to drop the traffic if the VPN is unavailable or Preferred if you want to send the traffic over another interface if the VPN is unavailable
- Matching: IP Address Range 192.168.100.0/24
- Tap Save
This Route allows any device on LAN 1 access to any device in the 192.168.100.0/24 range over LAN1. This should be Static, not Preferred because you can never reach the Dish admin portal over another WAN.
Note that instead of an IP Address Range, you can use the exact IP of the Dish (typically 192.168.100.1). You can also limit the Route to a specific device or group to secure the admin portal a bit more by controlling access.
Wi-Fi Calling in a Multi-WAN Network
If you have a multi-WAN configuration with load-balancing selected you may want to look at another example Content Based Routing. See Wi-Fi Calling.
