Advanced Custom Routing

Follow
Avatar
Jose Cardoso
  • Edited
I have a question relating to custom routing of two CIDRs not managed by my Firewalla Purple. I have 10.20.30.0/24 and 10.20.31.0/24 defined on a Kubernetes cluster (single node running on 192.168.144.200) which is exposing these CIDRs to my LAN via the Cilium CNI (in native networking mode).

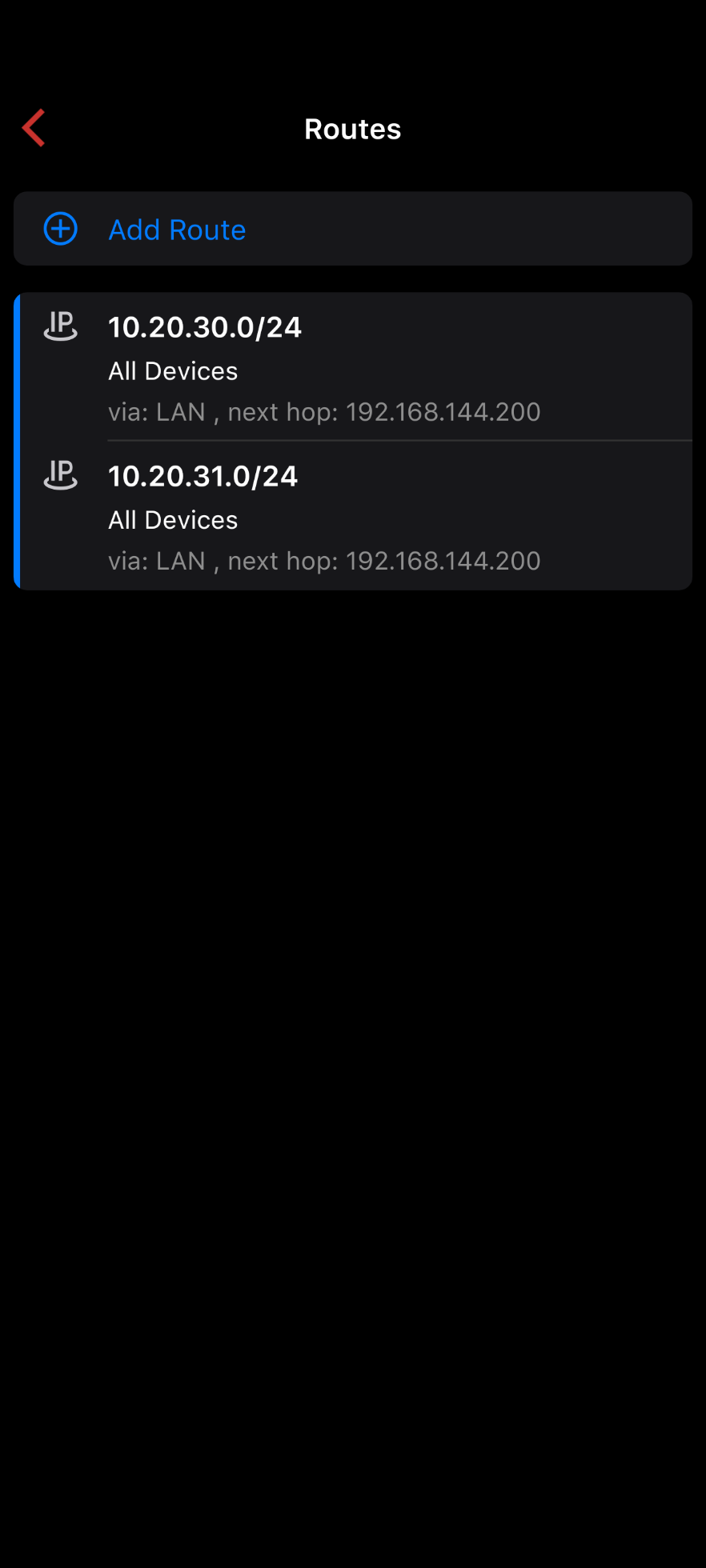

I've been able to add these two CIDRs as routes to my Firewalla making them accessible to my LAN:

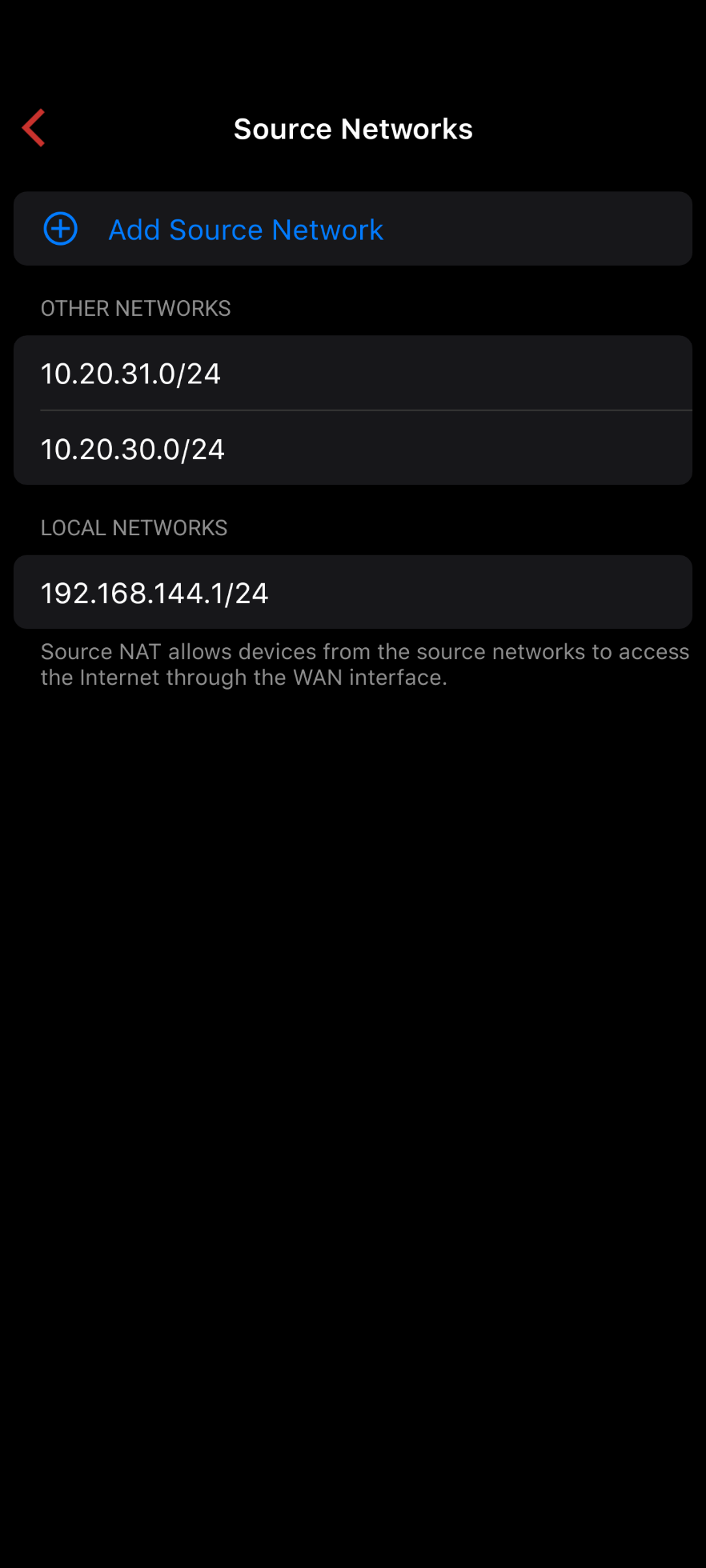

I've also been able to NAT them successfully over my WAN as follows:


All of the above was verified by running tcpdump on the Firewalla.

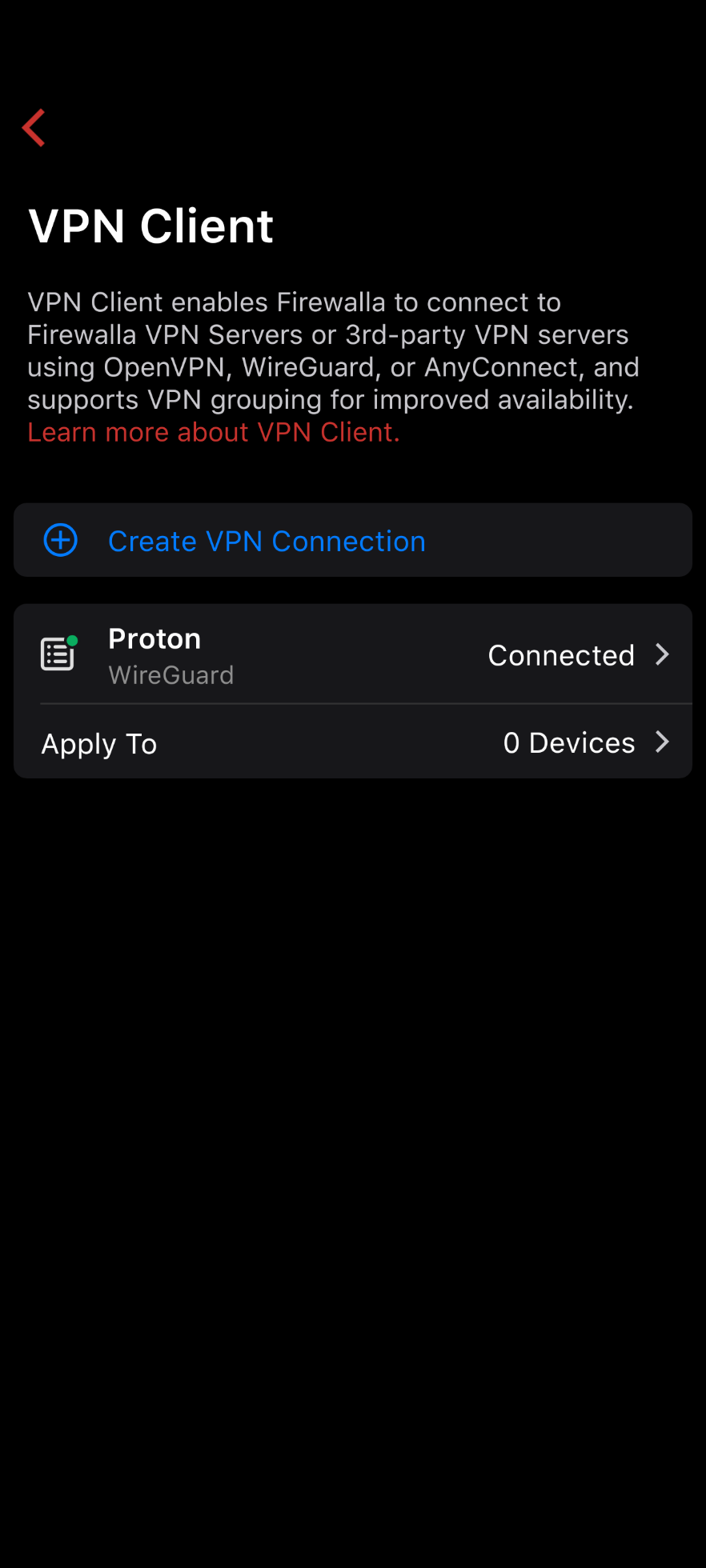

However I'd like to actually route 10.20.31.0/24 over my Proton VPN client connection:


I just can't figure out how to achieve this via the app UI or MSP. Only Firewalla devices appear to be selectable. Can this only be done via a custom route added via SSH?

Any suggestions welcome.
