VPN and Dual Wan Router

Comments

7 comments

  • Avatar
    Firewalla

    Have you tried a different port than 1194? I have seen some routers that reserve that port for themselves.

    0
    Comment actions Permalink
  • Avatar
    Neil Vass

    Tried twice more with 2 more random Ports (30255 and 30401) same results.

    0
    Comment actions Permalink
  • Avatar
    Firewalla

    Does both of your links (WAN) have public IP address?

    0
    Comment actions Permalink
  • Avatar
    Neil Vass

    Yes they do, but I have tried physically disconnecting one WAN and ensuring the IP address of the other is the same as the one used by Firewalla VPN Server

    Still not working.



    0
    Comment actions Permalink
  • Avatar
    Firewalla

    Did you check the TPLink documentation? I found this pretty quick on the web, seems there is a step to define service type ... or something https://www.tp-link.com/us/support/faq/2026/



    0
    Comment actions Permalink
  • Avatar
    Neil Vass

    Thanks.

    I have looked at this document before. But it's for TL-ER6020 v2 and they have clearly changed how things are done from the V1

    I have a query out to TP-Link but nothing back so far. I can't believe port forwarding is that complex on this router.

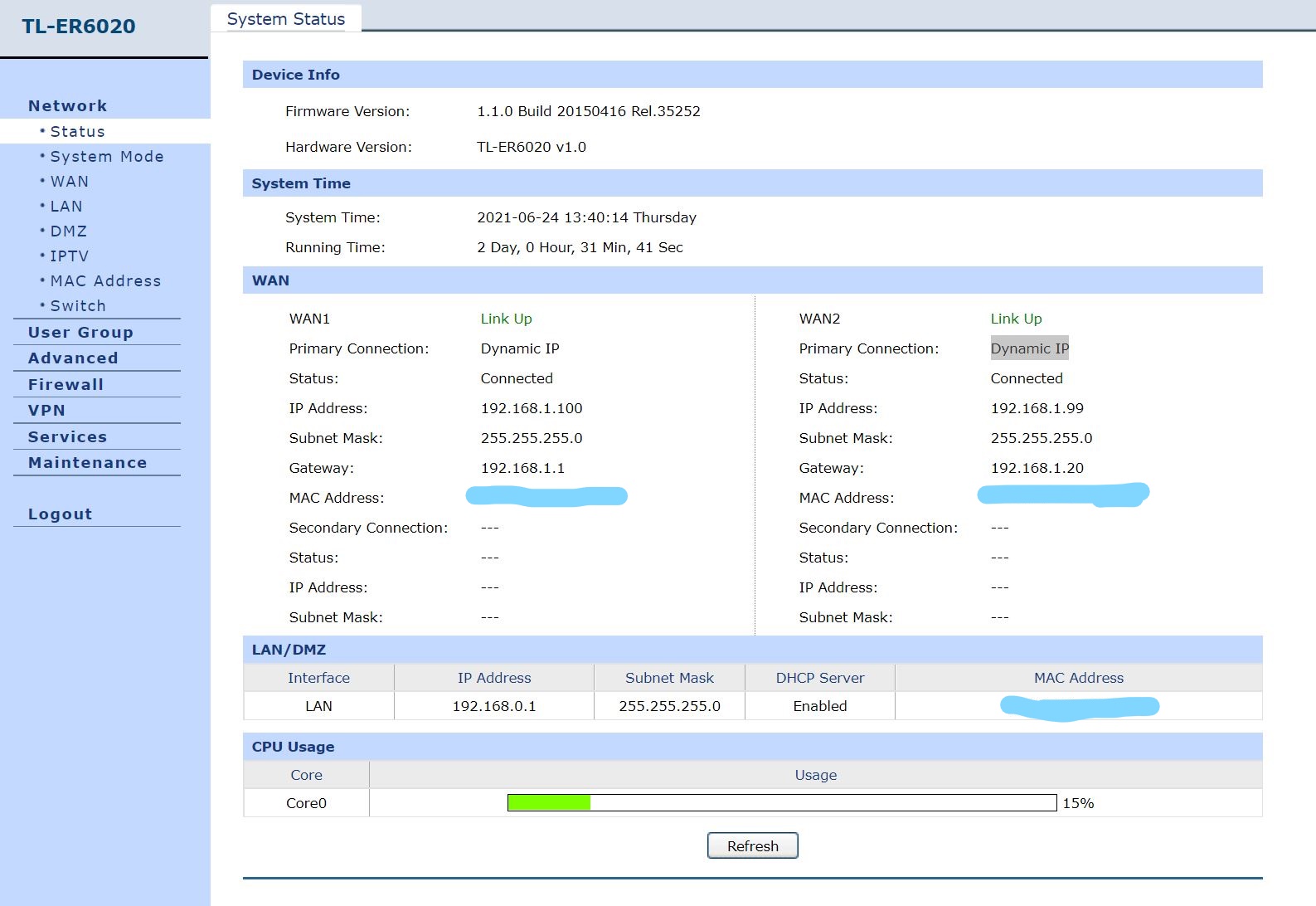

    One thing I did notice and I have no idea if this might be the cause ( I am out of my depth already). Maybe you can tell me. It looks as if neither of my service providers has set up my WANs as pass-through (See picture below, which is typical Thailand), Although everything else works just fine) The WAN IP address I have been using has remained unchanged since I started trying to fix this. Could this be causing the issues!

    0
    Comment actions Permalink
  • Avatar
    Firewalla

    The problem of your connection is, your ISP is NOT giving you public ipv4 addresses. (you have all 192.168.x.x). You will need to call them up and ask them for a public IP

    0
    Comment actions Permalink
