I regularly have problems with the network dropping.

Follow

Dave Disseldorp

• February 08, 2023 15:58

Good day,

I regularly have problems with the network dropping.
then i restart the firewalla purple and then everything works again for 10 15 minutes.

I have the Genexis Titanium 44 modem
And a TP link Deco m5 as Router
and the firewalla purple

from the modem a network cable to the Deco m5 and then a network cable to the and from the firewalla purple to a network.

i connected it with monitors through this way
Monitoring mode Bridge Mode

Have I connected it correctly?

0

•

  Dave Disseldorp

  • February 08, 2023 16:24
  • Edited

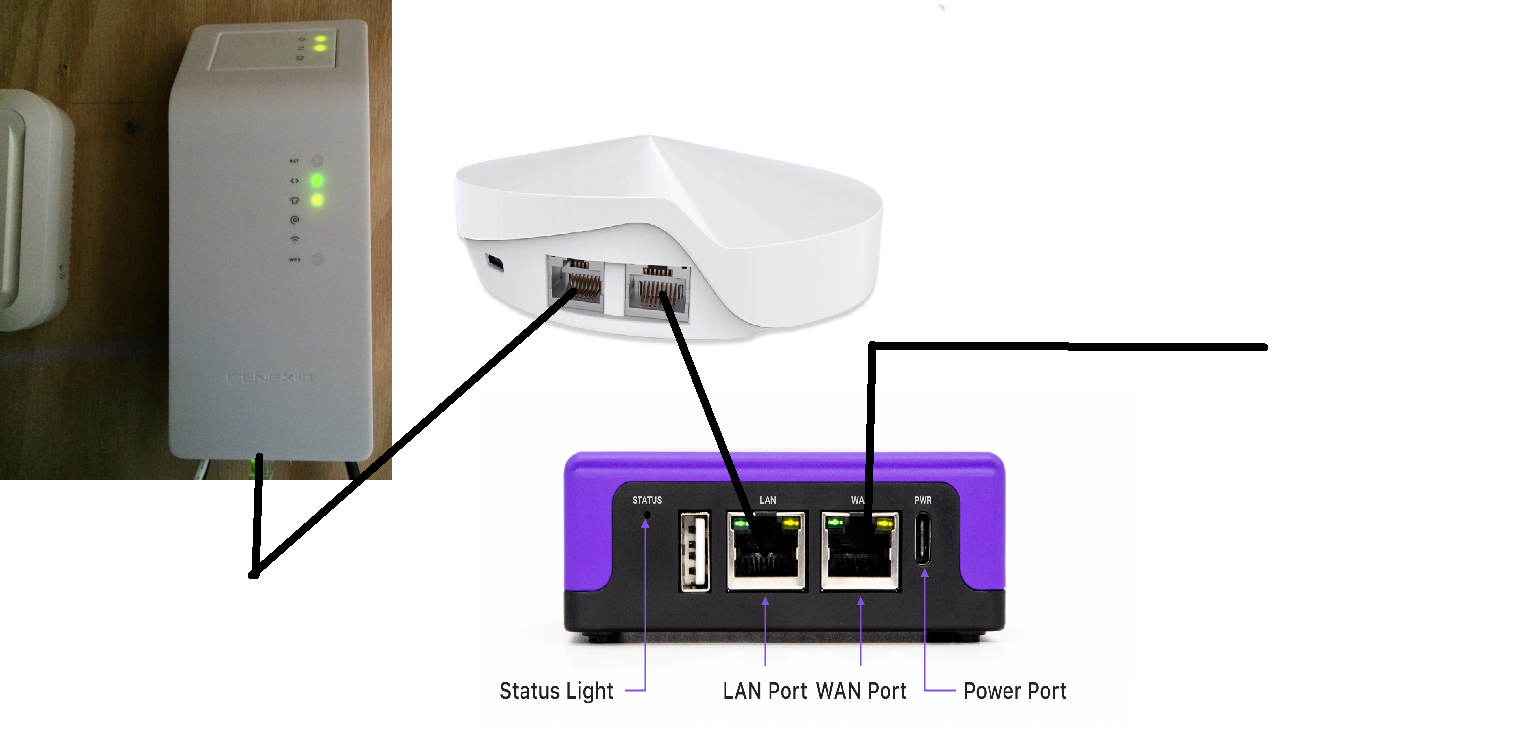

  This is how I connected it, the black lines are the network cables




  0

  Comment actions Permalink
•

  Firewalla

  • February 08, 2023 17:08

  The best way to run the unit is following

  Modem ---> Purple WAN (Purple running in Router mode) --> Purple LAN ---> Deco WAN (Deco running in AP mode)

  Your current setup 'bridge mode', doesn't really do anything since your Deco is not bridged with the Firewalla ... Unless, you are connecting to the firewalla's WiFi

  0

  Comment actions Permalink
•

  Dave Disseldorp

  • February 17, 2023 11:45

  OK thanks for your response.

  I have now set it as router mode, and the deco as access point.
  it has been going well for a week but sometimes below i still find some interruptions in the internet. my ISP has already provided a new modem. The interruptions last approximately 5 to 10 minutes. this can be once or several times a day.

  Can I try anything else
