While most consumers will only have one WAN (Internet) connection, there are times when two WAN connections may be better than one:
- Your primary internet is not stable and needs a backup internet connection.
- Your primary internet is slow, and needs another line for bandwidth and redundancy.
Firewalla's Multi-WAN feature will help you manage a maximum of two WAN connections in either primary/failover or load balancing mode. Experiences inside a multiple WAN network should be similar to a single WAN network, if not a bit better with the added availability and bandwidth.
- Multi-WAN Setups
- How to configure Multi-WAN
- Additional Multi-WAN Configurations
- WAN Connectivity Test
Multi-WAN Setups
If you have Firewalla Gold:
You can use one of Gold's ports as a new WAN interface, just like your primary WAN, or get a Wi-Fi SD and back up your home network with Wi-Fi.
If you have Firewalla Gold + Firewalla WiFi SD:
The Firewalla WiFi SD can be used in conjunction with the Firewalla Gold (and future Gold products) to enable you to tether to your phone (or another WiFi hotspot) when your main network is down and have the Firewalla Multi-WAN support automatically swap your primary internet (and automatically swap back once your primary internet is up).
See Firewalla WiFi SD tutorial
If you are using Firewalla Purple:
Firewalla Purple allows a maximum of one Wi-Fi and one Ethernet WAN connection for a total of two WAN connections.
The Purple Wi-Fi can tether to your mobile phone and create a dynamic backup internet for your whole house while the primary WAN is down.
If you have a Firewalla Purple SE, you can use the Firewalla WiFi-SD to create a WiFi-WAN for failover.
If you have a multi-WAN configuration, Firewalla will show you the live throughput on each WAN separately when you are connected to the local networks.
How to configure Multi-WAN
Multi-WAN configuration only becomes available when more than one WAN network is enabled and your box is running in "Router Mode". Currently, Multi-WAN settings only support 2 WAN connections.
To create a new WAN connection:
- Tap on Network Manager
- Tap on Edit -> Create Network
- Select WAN Connection
- Tap the Ethernet Port or the Wi-Fi interface you'd like to create the WAN connection on, then save your configuration.
After you create a secondary WAN, you can configure how multiple connections handle Internet traffic under "Multi-WAN Setting". There are two modes:
- Failover (Default)
- Load Balance
Failover (Default)
Failover mode is intended to ensure the availability of the Internet connection, where you can use a standby network to take over when the active connection fails. In this case, only one WAN circuit is active at any time. There may be traffic on the standby to do basic connectivity checks.
- Active & Standby State: When both connections are enabled, the Primary WAN will be active, and the other one will be on standby. If the active connection fails, the standby network will become active to maintain uninterrupted internet connectivity.
- Primary WAN: The Primary WAN will be active when both connections are available at the same time.
- Auto Failback: When the primary connection fails, the standby WAN takes over. If Auto Failback is enabled, the connection will fail back to the Primary automatically when it resumes.
If you are using DDNS or VPN with failover mode:
- DDNS always points to the Active WAN.
- Traffic on the VPN Server network will always be sent to the Active WAN. If the Active WAN is down, you'll need to manually re-connect the VPN.
- VPN client traffic will be sent to the primary WAN.
- All traffic will be routed to the Active WAN unless specified.
Policy-based Routing
If you want to "lock/pin" certain traffic to go to a certain WAN connection, you can create a "route" for it, so that when this WAN is down, the traffic matching the "route" will be dropped instead of going through the network on standby.
For example, if you are using your mobile hotspot as your backup WAN on Purple but you don't want video or gaming traffic to kill your mobile plan, you can create Routes to send all video and gaming traffic to the primary WAN connection and set the Route Preference to Static.
On the contrary, if you want to send your video traffic to your primary WAN only when it's available, and allow the traffic to go through to the secondary WAN when the primary is down, you can set the Route Preference to Preferred.
More details on Firewalla Policy & Content-based routing.
Wi-Fi Calling
Another example is wi-fi calling. If you have trouble with Wi-Fi calling in a multi-WAN configuration in Load balancing mode, it may be because traffic is split between the WANs and incoming packets may come over a different WAN than the corresponding outgoing traffic went over. The solution is to create a Preferred Route to send the required ports and domains for Wi-Fi calling over one WAN. For example, for Verizon you can create routes for:
- Ports: 500,4500
- Domain(s): wo.vzwwo.com
You can find a few other carrier settings here or check with your mobile carrier. With preferred routes for these in place:
- All Wi-Fi calling traffic will go over the specified WAN as long as the WAN is available but if not, traffic will failover to the alternate WAN. Wi-Fi calling traffic won't be load balanced.
- All other traffic will be load balanced according to the settings you selected.
Example Routes looks like:
.
Load Balancing
Load balancing distributes network traffic across multiple networks. It helps improve the responsiveness of internet access and ensures no single network gets overloaded. This mode is ideal if you live in areas that have slow and unstable Internet.
Weight Ratio: Load balance allows you to set a relative weight for each WAN connection. The weight is defined as the percentage of traffic (or connections) sent through the WAN.
- If one of the WAN connections fails, the other will take over all the traffic.
- Load balancing is done at layer 3 or by looking at the IP address. If your flows all have the same destination IP address, they will always flow to the same interface. This behavior is to ensure that your network works correctly when dealing with banks and other services that check the source IP.
- Load balancing may not work for sites (like banks) that check the consistency of the source IP address. If this happens, you can manually route traffic to stay on one network using Firewalla Policy & Content-based routing.
- DDNS will be pointed to a random WAN.
- Traffic on the VPN Server network will be sent to a random WAN.
- VPN Client traffic with be distributed between the two WANs.
- All traffic will be distributed between the two WANs unless specified.
Additional Multi-WAN Configurations
Internet Speed and Quality Testing

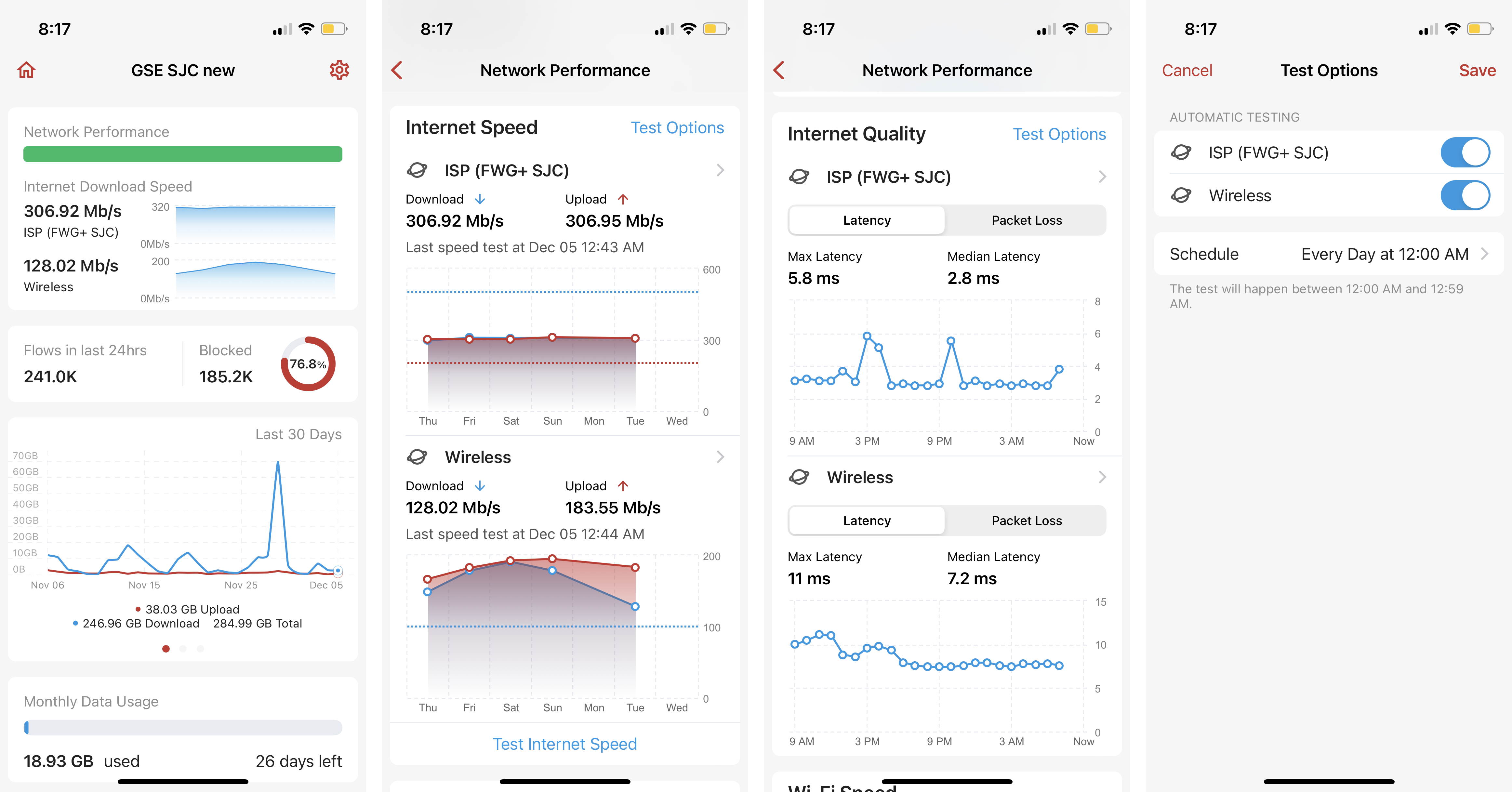

You can test the Internet Speed and Quality of your WAN networks separately. Tap the Network Performance widget on the top of your box's main page, then scroll down to the Internet Speed and Internet Quality sections. Tap on Test Options in the top right corner of each section to set up automatic testing. You can set different server preferences, Internet bandwidths, and test settings for each WAN.
If you have Internet Speed testing set up for both WANs, you'll see two speed charts displayed on your box's main page.
To run the speed test manually, just tap Test Internet Speed and select which WAN to test.

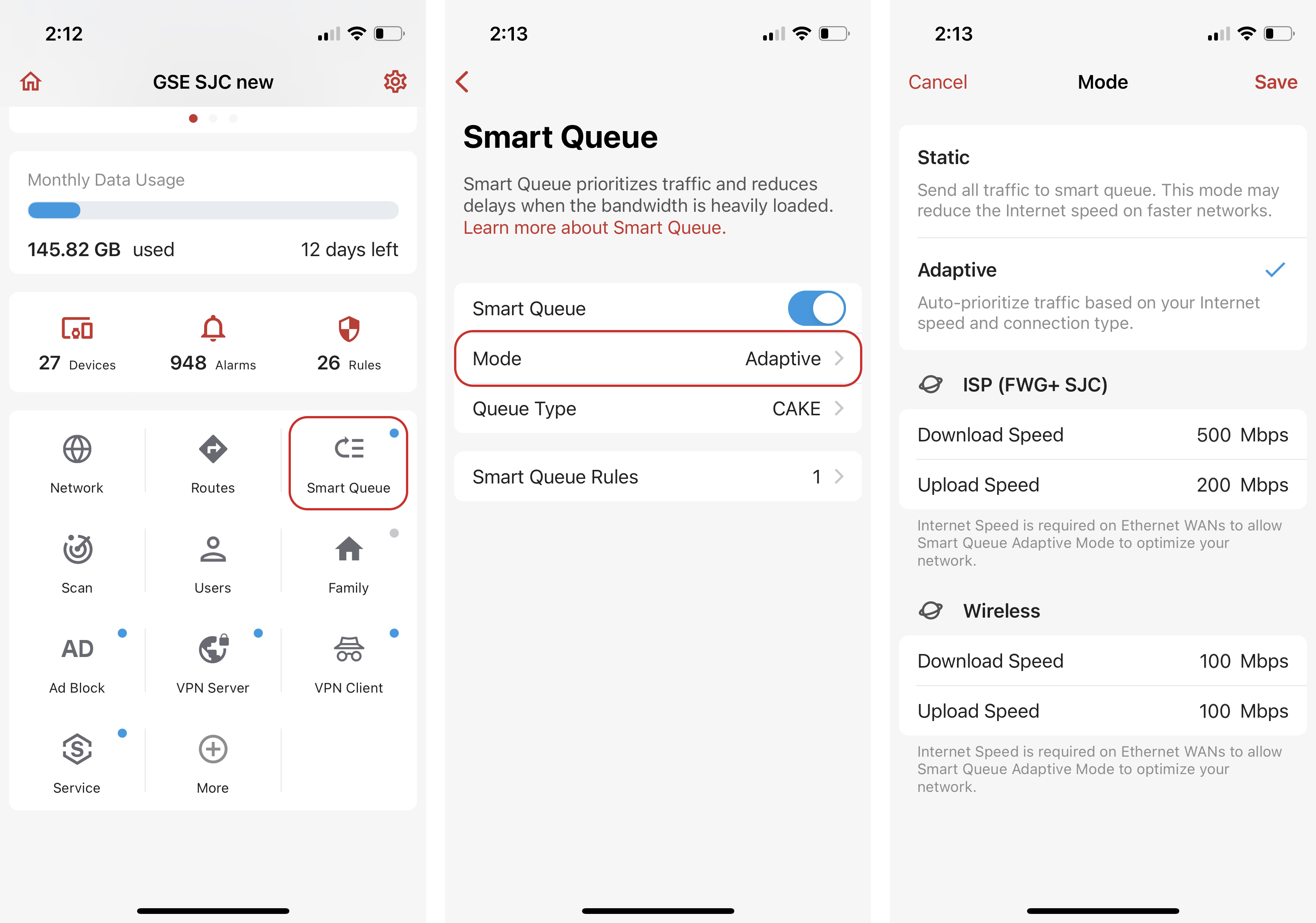

Adaptive Smart Queue
Smart Queue Adaptive Mode auto-prioritizes traffic based on your Internet speed. You can set different speeds for each WAN so Smart Queue Adaptive mode can better adjust its policy based on which WAN traffic is going through.
You'll be asked to enter Internet speed information when creating a WAN or turning on Adaptive Smart Queue (Adaptive Smart Queue can be turned on directly from the Smart Queue page or through the auto-configuration wizard). Internet speed will also be used as a reference for your Internet speed test results.
WAN Connectivity Test
WAN Connectivity tests are used to decide which WAN circuit can be used and to trigger failover and fallback actions if necessary. There are two types of tests available for each WAN connection: Ping Tests and DNS Tests. If one of the tests fails, the WAN connection will be considered lost.
Ping Test:
- Up to 3 Ping test targets are supported.
- You can edit the Ping Test Count and Success Rate Threshold.
The test will ping each target several times (Ping Test Count) on every test. If the success rate is lower than the Success Rate Threshold you've set, the test will be considered as failed.
DNS Test:
You can edit which domain is used for the test. If DNS servers fail to resolve the target domain, the DNS test will be considered as failed.
Learn more about Network Events and Connectivity Test.
FAQ
Why am I see activities on my standby WAN
There are some scenarios that traffic will go to standby WAN:
- Internet Quality Test is enabled on standby WAN.
- WAN Connectivity Test is enabled on standby WAN.
- Internet Speed Test is enabled on standby WAN.
- Policy based routing rule route traffic to standby WAN.
- IPv6 is enabled on the LAN, while the standby WAN supports IPv6 only.
- DDNS is set to standby WAN, and VPN Server is enabled.
- VPN connection (VPN Client) was created when the primary WAN was down.
